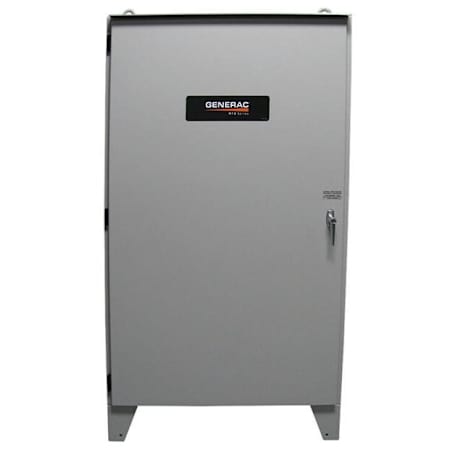

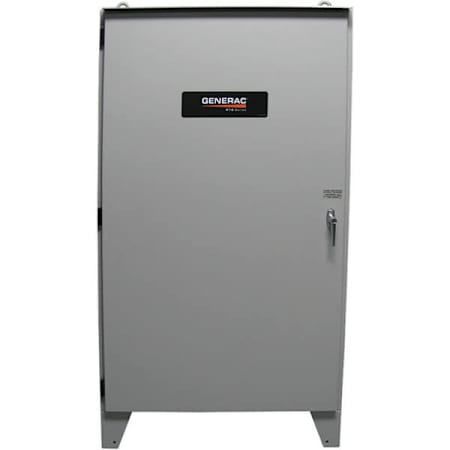

Generac 800-Amp 120 / 240V Single-Phase Standard Automatic Transfer Switch with Power Management

Features:

• 800-Amp Automatic Smart Transfer Switch with Power Management
• Only works with 120/240 Single-Phase generators
• Compatible with current Generac 22-150kW liquid-cooled models
• Designed For Standard Installation
• Requires a sub-panel for overload protection
• Digital Power Management Technology (DPM)
• Allows your generator to work smarter, not harder
• Be Smart....Get More Out Of Your Generator
• Cycles power on and off as needed for different appliances
• Manage Up To (2) Individual HVAC Loads - No Hardware Required
• Great for homes with multiple air conditioners (24 VAC controlled)
• Up To (4) Smart Management Modules (SMM) (Sold Separately)
• Frequency (Hz) monitoring design, no control wire required
• Versatile design, easily prioritize loads and lock-out non-essential loads
• NEMA 3R Indoor/Outdoor Rated Enclosure
• Heavy-duty, lockable steel design provides added security
• Tech Spec Summary: Only For Use with Generac Generators
• Load Transition Type: Open Transition
• Withstand Rating: 65,000 Amps --- Lug Range: 4/0 - 500 MCM
• 5-Year Limited Warranty - UL Listed

Overview:

• Transfer Switch Style: Standard Installation
• Product Weight: 337 lbs
• Depth: 21"
• Width: 36"
• Height: 66"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Electrical Phases: 1
• Max Generator Input: 800A
• Max Utility Input: 800A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
