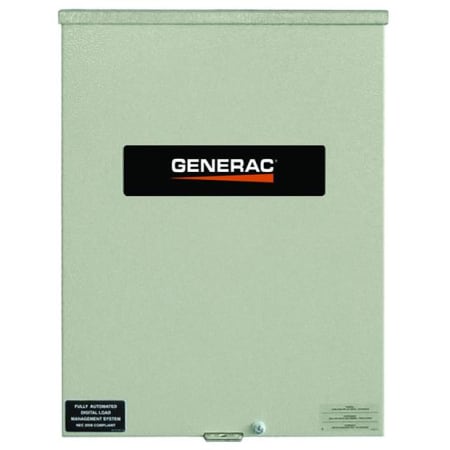

Generac 400-Amp 120 / 240V Single-Phase Standard Automatic Transfer Switch with Power Management

Features:

• 400-Amp Automatic Transfer Switch with Power Management
• For Generac Evolution™ and Generac Nexus™ Controllers
• Designed For Standard Installation
• Requires a sub-panel for overload protection
• Digital Power Management Technology (DPM)
• Allows your generator to work smarter, not harder
• Be Smart....Get More Out Of Your Generator
• Cycles power on and off as needed for different appliances
• Manage Up To (4) Individual HVAC Loads - No Hardware Required
• Great for homes with multiple air conditioners (24 VAC controlled)
• Up To (8) Smart Management Modules (SMM) (Sold Separately)
• Frequency (Hz) monitoring design, no control wire required
• Versatile design, easily prioritize loads and lock-out non-essential loads
• NEMA 3R Indoor/Outdoor Rated
• Steel, wall mountable weather-proof enclosure
• Electrostatically applied and baked powder coating paint (gray)
• Tech Spec Summary: Only For Use with Generac Generators
• Load Transition Type: Open Transition
• Withstand Rating: 22,000 Amps --- Lug Range: #4 or 1/0 - 250 MCM
• 5-Year Limited Warranty - UL Listed

Overview:

• Transfer Switch Style: Standard Installation
• Product Weight: 133 lbs
• Depth: 10"
• Width: 24"
• Height: 36"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Electrical Phases: 1
• Max Generator Input: 400A
• Max Utility Input: 400A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
