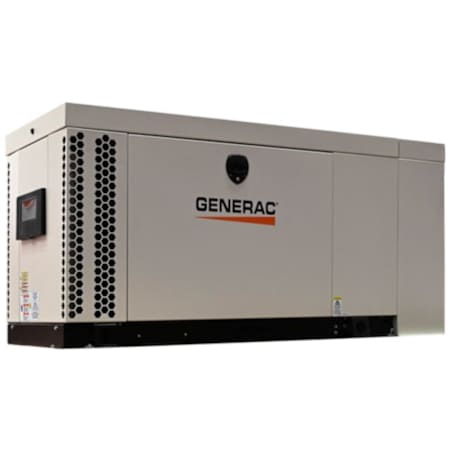

Generac Protector RA Series 30kW (277 / 480V) Three-Phase Liquid Cooled Diesel Extended Run Standby Generator with Mobile Link

Please Note - Requires Loading Dock or Forklift For Delivery

BASE TANK IS NOT DISPLAYED IN PRODUCT IMAGE

Features:

Generac RA03022KDAL - ProtectorRA Series Extend Run Diesel Standby Generator

• For light commercial applications with 277/480V 3-Phase service

Fully Automatic Operation When Paired with Generac ATS

• Generator is only compatible with Generac Auto Transfer Switches

Mobile Link and Fleet Standard Cellular Connectivity

• Monitor generator status on a smart phone, tablet or PC

• *Requires internet connection

True Power Electrical Technology

• Less than 5% Total Harmonic Distortion (THD) for utility grade power

Automatic Digital Voltage Regulation (+/-1%)

• Allows for faster response time and maximum motor starting ability

Perkins 2.2L In-Line Turbocharged 4-Cylinder Diesel Engine

• Fuel efficient design runs at 1800 RPM for long engine life

• 250-Hour Oil service interval for lower maintenance costs

Integrated, Extended-Run, 130-Gallon Double-Wall Base Fuel Tank

• Provides up to 100 hours of run time at 1/2 load

Power Zone 410 Controller

• LCD Display provides service and maintenance intervals

• Optional NFPA 110 Controller Kit (Not Included)

Quiet-Test

• Runs at a lower RPM, is quieter and consumes less fuel

Isochronous Electronic Governor Control

• Precise load response and voltage/frequency regulation (+ or - 1%)

Corrosion-Resistant Aluminum Enclosure

• Enhanced durability, ideal for coastal and salt-water environments

• Sound dampening design limits sound pressure to a low 70dB(A)

Code Ready - Compatibility With A Variety Of Environments

• External Vent and Fill, UL/CUL 142-Listed Double Wall Based Tank

UL/CUL 2200-Listed Generator - 5-Year / 2000-Hour Limited Warranty

Overview:

• Product Category: Standby Generator
• Generator Features: Low Oil Alert/Shutdown
• Product Weight: 2463 lbs
• Length: 96"
• Width: 35"
• Height: 73-13/16"

Specifications:

• Voltage: 277, 480V
• Frequency: 60 Hz
• Running Wattage: 30,000 Watts
• Amperage: 45A
• Decibel Rating @ 7m: 65 - 70 dbA
• Enclosure Material: Aluminum
• Mounting Pad: Concrete (Not Included)
• Cooling Type: Liquid Cooled

Engine:

• Engine Brand: Perkins
• Starting System: 12v Auto Start
• Cubic Capacity: 2200 CC
• RPM: 1800 RPM
• Low Oil Alert/Shutdown: Yes

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
