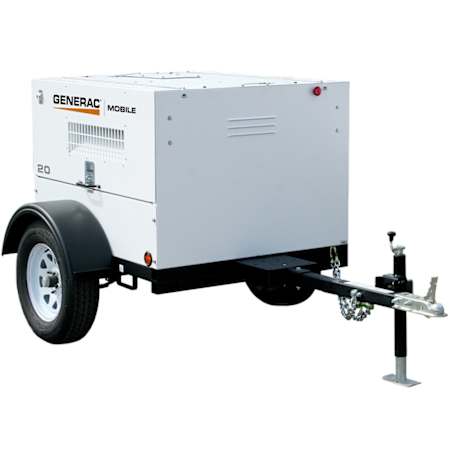

Generac 19kW (Prime) / 20kW (Standby) (120 / 240V) Single-Phase Towable Diesel Generator with Isuzu Engine

Features:

Generac Mobile MLG20IF4 Mobile Diesel Generator

• Designed and engineered for optimum performance and reliability

Marathon Electric Brushless Alternator - Single-Phase Output

• Prime - 19 kW / 19 kVA (79A at 240V)

• Standby - 20 kW / 20 kVA (83A at 240V)

Marathon SE350 Voltage Regulator

• Provides Voltage regulation of +/- 1% for cleaner power

2.2L Isuzu Liquid Cooled Diesel Engine (EPA Tier 4 Final)

• Fuel efficient design runs at 1800 RPM for extended engine life

• Rubber vibration dampers isolate engine/generator from frame for quieter operation

50-Gallon Polyethylene Internal Fuel Tank with 3.5" Fill Port

• Provides up to 47.6 hours of run time at 50% load

• Provides up to 23.8 hours of run time at 100% load

Automatic Low Oil / High Temperature Shutdown System

• Provides added safety to extend engine life

Easy To Use System Controls

• 4-Position keyed switch (Preheat, Off, Run and Start)

• Hour Meter makes it simple to monitor run time and maintenance intervals

• Emergency stop switch located on front panel

Internally Mounted Circuit Breakers with 100A Start Limit Breaker

• Provides added protection to all receptacles on genset

(2) 240V 30A (L6-30R) and (2) 240V 50A (Non-Nema 6369) Twistlock Outlets

• Individually breakered for added safety during operation

(2) 120V 20A GFCI Duplex Outlets

• Provides the convenience of powering 120V equipment

14-Gauge, Sound Attenuated Steel Enclosure - 70 dB(A) at 23'

• Powder-coated, UV and fade resistant paint for exterior/interior of enclosure

• Fully-lockable, insulated and baffled with stainless steel hardware

• Multi-lingual operating/safety decals; Manual holder with operating manual

58" Track Width, DOT Approved Tubular Steel Trailer with 2" Ball Hitch

• Transportation tie downs, Safety chains with spring-loaded hooks

• Tail, side, brake, and directional lights; Recessed rear lights

• 15" ST205/75R15 - 6 ply wheel/tire and Single wall polyethylene fenders

CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER

1-Year / Unlimited, 2-Year/ 2,000 Hour Limited Warranty

Overview:

• Product Category: Towable Generator
• Generator Features:
  • Automatic Voltage Regulation
  • Fuel Gauge
  • Hour Meter
  • Idle Control
  • Low THD
• Battery Included
• Product Weight: 1471 lbs
• Length: 105"
• Width: 68"
• Height: 56"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Running Wattage: 19,000 Watts
• Starting Wattage: 20,000 Watts
• Amperage: 167, 83A
• Decibel Rating @ 7m: 70 dbA
• Enclosure Material: Steel

Engine:

• Engine Brand: Isuzu
• Starting System: 12-Volt Key Start
• Cubic Capacity: 2200 CC
• Horsepower: 40.2 HP
• RPM: 1800 RPM

Product Assurance:

• EPA Compliant
• Warranty: 2 Year

Plug Types:

(2) CS6364/5 - 50-Amp Twistlock

(2) NEMA 5-20R - GFCI
