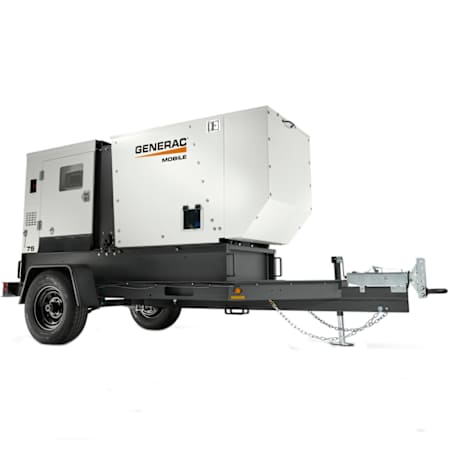

Generac 60kW (Prime) / 68kW (Standby) Multi-Voltage Skid-Mount Diesel Generator (John Deere Engine) with Single-Axle Trailer

Features:

Generac Mobile MDG75DF4 Skid-Mount Diesel Generator

• Designed and engineered for optimum performance and reliability

Marathon Electric Brushless Alternator - Multi-Phase Output

• Three-Phase: 60 kW / 75 kVA (Prime), 68 kW / 85 kVA (Standby)

• Single-Phase: 55 kW / 55 kVA (Prime), 55 kW / 55 kVA (Standby)

PM600 Voltage Regulator

• Provides Voltage regulation of +/- 0.5% for cleaner power

3-Position Voltage Selector Switch

• Single Phase - 120/240V Zig Zag

• 3-Phase - 120/208V Low Wye and 3-Phase 277/480V High Wye

4.5L John Deer Turbocharged, After-Cooled Diesel Engine (EPA Tier 4 Final)

• Fuel efficient design runs at 1800 RPM for extended engine life

• Rubber vibration dampers isolate engine/generator from frame for quieter operation

165-Gallon Polyethylene Internal Fuel Tank with 3.5" Fill Port

• Provides up to 30 hours of run time at 100% load

Deep SeaController with 4-Line Back-lit LCD Text Display

• Push button design; Manual or Auto Start, Engine Start, Stop/Reset, Alarm Mute

• Scrolling Arrows for Diagnostic Information; Engine and Generator diagnostics

• *Please see spec sheet for additional controller information

9-Warning and Shutdown Alarms with 250-Event (Date/Time Stamp) History Log

• Provides safer operation by monitoring engine and generator systems

300-Amp Main Breaker With Shunt Trip

• Lockable control box door with diagnostics window;

• Remote Start/Stop contacts located in lug box

• Lockable lug box with safety switch; Output ground connection lug inside lug box

(2) 120V 20A GFCI Duplex Outlets (5-20R) and (3) 240V 50A (Non-Nema 6369) Twistlock

• Individually breakered for added safety during operation

Sound Attenuated Aluminum Enclosure - 74 dB(A) at 23' (Prime Power)

• Powder-coated, UV and fade resistant paint for exterior/interior of enclosure

• Fully-lockable (enclosure and fuel fill), insulated and baffled with central lifting point

• External Emergency Stop Switch; Multi-lingual operating/safety decals

CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER

2-Year / 2,000 Hour Limited Warranty

Includes Generac Single-Axle Trailer

• For MDG75DF4 Skid-Mount Diesel Generators

DOT Approved Tubular Steel Trailer with Surge Brakes and 3" Ring Hitch

• Transportation tie downs, Safety chains with spring-loaded hooks

LED Tail, Side, Brake and Directional Lights

• 15" Tires and polyethylene fenders

Overview:

• Product Category: Towable Generator
• Generator Features:
  • Automatic Voltage Regulation
  • Fuel Gauge
  • Hour Meter
  • Idle Control
  • Low THD
• Battery Included
• Product Weight: 4530 lbs
• Length: 170"
• Width: 69"
• Height: 80"

Specifications:

• Frequency: 60 Hz
• Running Wattage: 60,000 Watts
• Starting Wattage: 68,000 Watts
• Decibel Rating @ 7m: 74 dbA

Engine:

• Engine Brand: John Deere
• Starting System: 12-Volt Key Start
• Cubic Capacity: 4500 CC
• Horsepower: 97 HP
• RPM: 1800 RPM

Product Assurance:

• EPA Compliant
• Warranty: 2 Year

Plug Types:

(2) NEMA 5-20R - GFCI

(3) CS6364/5 - 50-Amp Twistlock
