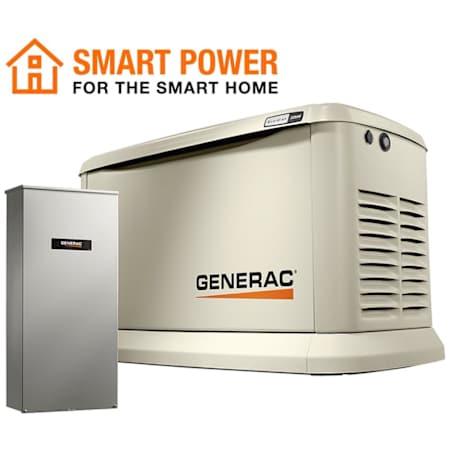

Generac Guardian Series 22kW (120 / 240V) Single-Phase Air Cooled Multi-Fuel Standby Generator with 200a Automatic Transfer Switch and Wi-Fi

*NOTE - Some Images show OPTIONAL Fascia Kit - Fascia Kit is SOLD SEPARATELY

Features:

22kW (LPG) / 19.5kW (NG) Guardian Air-Cooled Standby Generator

• Protects your home and family during a power outage

• Digital Power Management (DPM) protects against overload

Includes Mobile Link Wi-Fi Remote Monitoring*

• Monitor generator status on a smart phone, tablet or PC

• *Requires internet connection and wireless router

Includes 200-Amp Service Entrance Rated Automatic Smart Switch

• Installs between main meter and service panel for faster and less costly installation

• DPM technology allows for the Smart Control of (4) A/C units

• Great for homes with multiple Air conditioners (24 VAC controlled)

Add Up To (8) Generac Load Managers (Sold Separately)

• Frequency (Hz) monitoring design, no control wire required

• Versatile design, easily prioritize loads and lock-out non-essential loads

5-Year Limited Warranty + 24/7-365 Customer Support

• Have your questions answered when it's convenient for you

Generac's G-Force Engine

• Specifically designed for the demanding environment standby generators endure

• Full pressure lubrication system with 2 year oil change interval

Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)

• Connects to your existing LP or natural gas fuel supply

True Power Electrical Technology

• Less than 5% Total Harmonic Distortion (THD) for utility grade power

Automatic Digital Voltage Regulation (+/-1%)

• Allows for faster response time and maximum motor starting ability

Evolution2.0 Digital Controller

• Multilingual, 2-Line LCD display for simple, straightforward operation

• Programmable-exerciser lets you set how often and what time generator will self-test

Quiet-TEST Self-Test Mode

• Low RPM, 5 or 12 minute test for reduced noise and fuel consumption

Tough, Durable All-Aluminum Sound Attenuated Enclosure

• Rhino Coat powder-coated finish keeps enclosure protected from the elements

Installation Flexibility*

• Can be installed within 18" of a building; *Always check local building codes

Generac Standby Generators and Engines - Built In The USA*

• Built in the USA using domestic and foreign parts

Additional Features:

• Flexible fuel line and Built-in Battery Charger (Battery Sold Separately)

Automatic Transfer Switch Model # RXSW200A3

Overview:

• Product Category: Standby Generator
• Generator Features: Low Oil Alert/Shutdown
• Product Weight: 466 lbs
• Length: 48"
• Width: 25"
• Height: 29"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Running Wattage: 22,000 Watts
• Fuel Type: Liquid Propane, Natural Gas
• NG Power Capacity: 19,500 Watts
• LP Power Capacity: 22,000 Watts
• NG Fuel Consumption @ 50% Load: 203 ft3/hr
• NG Fuel Consumption @ 100% Load: 306 ft3/hr
• LP Fuel Consumption @ 50% Load: 3 gallons/hr
• LP Fuel Consumption @ 100% Load: 4 gallons/hr
• Amperage: 91.7A
• Decibel Rating @ 7m: 67 dbA
• Transfer Switch: Service Disconnect
• Enclosure Material: Aluminum
• Mounting Pad: Composite (Included)
• Cooling Type: Air Cooled

Engine:

• Engine Brand: Generac
• Starting System: 12v Auto Start
• Cubic Capacity: 999 CC
• RPM: 3600 RPM
• Low Oil Alert/Shutdown: Yes

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
