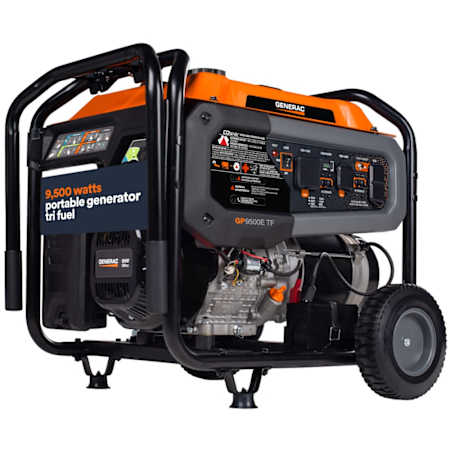

Generac GP Series 9,500 Watt (120 / 240V) Electric Button / Recoil Start Tri-Fuel Portable Generator with COsense (49-State)
Model: G0080630|Item: bci5177190
Details
Features:

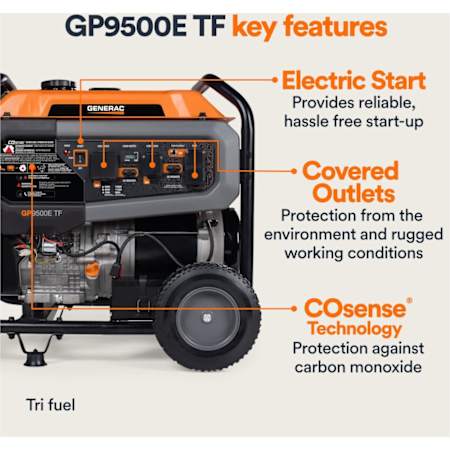

Generac GP9500E TF Tri-Fuel Electric Start Portable Generator
- Energizes mission-critical appliances - except central A/C
Tri-Fuel Operation with Fuel Source Selector - (Gasoline, LP, Natural Gas)
- Provides up to 9,500 running watts and up to 12,500 starting watts on gasoline
- Provides up to 8,550 running watts and up to 11,250 starting watts on propane
- Provides up to 7,000 running watts and up to 9,000 starting watts on natural gas
CO-SENSE Technology - STOPS, ALERTS, SAVES
- Protects against harmful carbon monoxide
Electric Start with Recoil Backup
- Start the generator with the press of a button (Battery Included)
- Plug-in battery charger jack keeps battery charged and ready
500cc Generac 4-Stroke OHV Engine with Low Oil Shutdown
- Designed for long life with safeguards in-place for peace of mind
7.5-Gallon Fuel Tank with Fuel Gauge
- Up to 9.5 hours of runtime at 50% load (Gas)
- Up to 4.5 hours of runtime at 50% load on 20Lb.Tank (LP - Tank Not Included)
120/240V 50-Amp (L14-50R) and 30-Amp (14-30R) Outlets***
- Easily provide power to larger tools and manual transfer switches
- Allows for connection to a convenience cord
Built-In Hour Meter
- Makes it easy to track run-time and maintenance intervals
1-1/4" Hardened Steel-Tube Cradle
- Protects the generator during transportation and operation
Heavy-Duty, Never-Flat Wheels and Fold-Down Handle
- Makes this generator easy to move over uneven terrain
- Allows for easy, compact storage
Also Includes: Engine Oil and LP Hose with Regulator
Please Note - Natural Gase Hose Not Included
3-Year Limited Residential and 2-Year Limited Commercial Warranty
Non-CARB Compliant and EPA Compliant - Not For Sale In California
Overview:
- Product Category: Portable Generator
- Generator Features:
- Automatic Voltage Regulation
- Cast Iron Engine Sleeve
- CO Sensing
- Fuel Gauge
- Hour Meter
- Low Oil Alert/Shutdown
- Low THD
- Battery Included

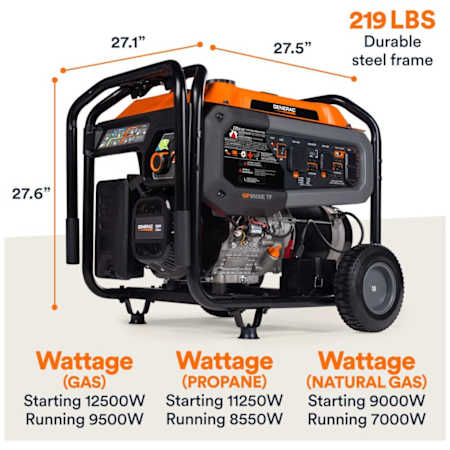

- Product Weight: 219 lbs
- Length: 27-1/2"
- Width: 27-1/8"
- Height: 27-5/8"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Running Wattage: 9,500 Watts
- Starting Wattage: 12,500 Watts
- Fuel Type: Gasoline, Liquid Propane, Natural Gas
- NG Power Capacity: 7,000 Watts
- LP Power Capacity: 8,550 Watts
- Amperage: 39.6A
Engine:
- Engine Brand: Generac
- Starting System: 12-Volt Button Start w/ Recoil
- Cubic Capacity: 500 CC
- RPM: 3600 RPM
- Low Oil Alert/Shutdown: Yes
Product Assurance:
- EPA Compliant
- Warranty: 2 Year and 3 Year
Plug Types:

(1) NEMA 14-50R

(1) NEMA 5-20R - GFCI

(1) NEMA L14-30R
Manufacturer Resources
Owners ManualSafety Data Sheet: BatterySafety Data Sheet: OilWarrantySpecification SheetDimensions and Measurements
Fuel Tank Capacity | 7.5 Gallons |
Height | 27.6 in. |
Length | 27.5 in. |
Product Weight | 219 lbs. |
Width | 27.1 in. |
Dimensions and Measurements
Fuel Tank Capacity | 7.5 Gallons |
Height | 27.6 in. |
Length | 27.5 in. |
Product Weight | 219 lbs. |
Width | 27.1 in. |
Included Components
Automatic Transfer Switch Included | No |
Battery Included | Yes |
Included Components
Automatic Transfer Switch Included | No |
Battery Included | Yes |
Characteristics and Features
Assembly Required | Yes |
Engine Brand | Generac |
Fuel Tank Material | Metal |
Generator Features | Automatic Voltage Regulation, Cast Iron Engine Sleeve, CO Sensing, Fuel Gauge, Hour Meter, Low Oil Alert/Shutdown, Low THD |
Characteristics and Features
Assembly Required | Yes |
Engine Brand | Generac |
Fuel Tank Material | Metal |
Generator Features | Automatic Voltage Regulation, Cast Iron Engine Sleeve, CO Sensing, Fuel Gauge, Hour Meter, Low Oil Alert/Shutdown, Low THD |
Electrical and Operational Information
Alternator | Brushed |
Amperage | 39.6 |
Cubic Capacity | 500 cc |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Fuel Type | Gasoline, Liquid Propane, Natural Gas |
LP Power Capacity | 8550 |
Neutral Type | Bonded |
NG Power Capacity | 7000 |
Plug Type | (1) NEMA 14-50R, (1) NEMA 5-20R - GFCI, (1) NEMA L14-30R |
RPM | 3600 |
Run Time @ 50% Load | 9.5 Hours |
Running Wattage | 9500 |
Starting System | 12-Volt Button Start w/ Recoil |
Starting Wattage | 12500 |
Voltage | 120, 240 |
Electrical and Operational Information
Alternator | Brushed |
Amperage | 39.6 |
Cubic Capacity | 500 cc |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Fuel Type | Gasoline, Liquid Propane, Natural Gas |
LP Power Capacity | 8550 |
Neutral Type | Bonded |
NG Power Capacity | 7000 |
Plug Type | (1) NEMA 14-50R, (1) NEMA 5-20R - GFCI, (1) NEMA L14-30R |
RPM | 3600 |
Run Time @ 50% Load | 9.5 Hours |
Running Wattage | 9500 |
Starting System | 12-Volt Button Start w/ Recoil |
Starting Wattage | 12500 |
Voltage | 120, 240 |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | No |
EPA Compliant | Yes |
Manufacturer Warranty | 2 Year, 3 Year |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | No |
EPA Compliant | Yes |
Manufacturer Warranty | 2 Year, 3 Year |
