Generac 30-Amp 240V Single-Phase Select Circuit Transfer System with 8-Circuit Load Center (Aluminum)

Features:

• Generac 30-A HomeLink™ Upgradeable Manual Transfer Switch
• Meets your needs today and when you're ready to upgrade
• Pre-Wired 30-Amp Manual Transfer Switch
• Interchangeable breakers make it easy to reconfigure or expand

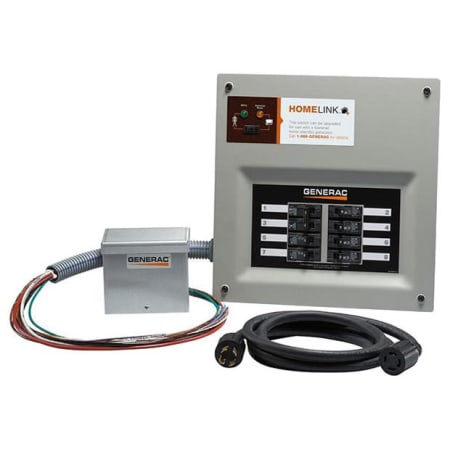

• Also Includes
• (1) 10' 30-Amp (L14-30) Power Cord
• (1) 30-Amp (L14-30) Aluminum Power Inlet Box (must be hardwired)
• Safely Power Hard-Wired Circuits
• The electricity you need to power your furnace, sump pumps, etc.
• From Manual to Automatic - Essential Circuit Coverage
• From a portable to a standby generator (11kW Max)
• Ready When You Are (By Cert Electrician)
• Field-upgradable to an automatic switch panel and new faceplate
• Includes 8 Total Circuits (Expands up to 10)
• (1) 30-Amp 2-Pole, (1) 20-Amp 1-Pole, and (5) 15-Amp 1-Pole
• Versatile Design and Flexible and Cost Effective Installation
• Can be used with GFCI and Non-GFCI portable generators
• Uses 1" standard, tandem, GFCI and AFCI breakers
• *Requires 50-Amp 2-Pole Breaker in Main Load Center (Not Included)



  5-Year Limited Warranty

Overview:

• Transfer Switch Style: Select Circuit
• Product Weight: 27.2 lbs
• Depth: 4"
• Width: 15-13/16"
• Height: 15-3/8"

Specifications:

• Voltage: 240V
• Frequency: 60 Hz
• Electrical Phases: 1
• Max Generator Input: 30A
• Enclosure Material: NEMA 1R

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
