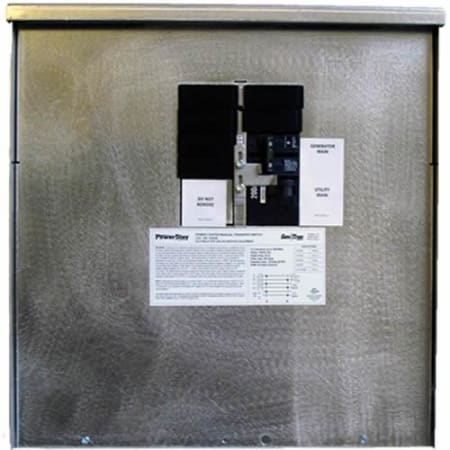

Generac 200-Amp 120 / 240V Single-Phase Outdoor Power Center (50-Amp Generator)
Model: 6335|Item: bci4725058
Details
Features:
- 50-Amp Outdoor Power Center (200-Amp Utility)
- Feed generator power to your whole electrical panel
- Pick and choose what you want to run (up to gen capacity)
- Service Disconnect

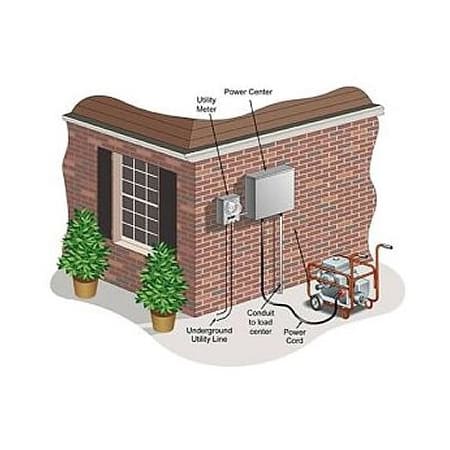

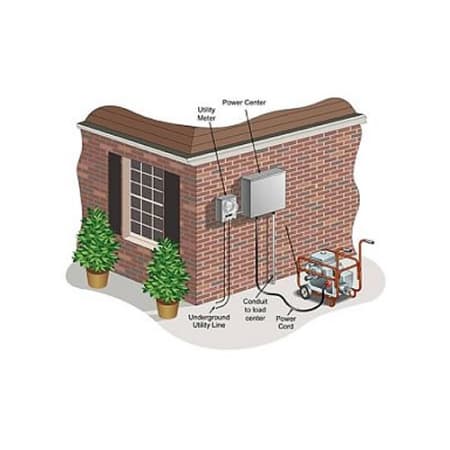

- Quick and easy installation through your utility meter
- Easy Connection (50-Amp Twist lock)
- Plug generator cord directly into power center
- NEMA 3R Outdoor Aluminum Enclosure
- Durable corrosion and rust resistant exterior
- UL Listed
- Certified for use by Underwriter Laboratories
- 200-Amps Utility/50-Amps Generator
- UL listed breakers: Siemens, Cutler, BR, Square D, HOM, GE, THQL
Overview:
- Transfer Switch Style: Service Disconnect
- Product Weight: 21 lbs
- Depth: 4"
- Width: 18"
- Height: 18"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Electrical Phases: 1
- Max Generator Input: 50A
- Max Utility Input: 200A
- Enclosure Material: NEMA 3R
Product Assurance:
- Certifications: UL
- Warranty: 2 Year
Manufacturer Resources
Specification SheetDimensions and Measurements
Depth | 4 in. |
Height | 18 in. |
Length | 18 in. |
Product Weight | 21 lbs. |
Width | 18 in. |
Dimensions and Measurements
Depth | 4 in. |
Height | 18 in. |
Length | 18 in. |
Product Weight | 21 lbs. |
Width | 18 in. |
Characteristics and Features
Enclosure Material | NEMA 3R |
Number of Circuits | 12 |
Characteristics and Features
Enclosure Material | NEMA 3R |
Number of Circuits | 12 |
Electrical and Operational Information
Amperage | 50 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Max Generator Input | 50 |
Max Utility Input | 200 |
Running Wattage | 12500 |
Transfer Switch Style | Service Disconnect |
Voltage | 120, 240 |
Wattage | 12500 |
Electrical and Operational Information
Amperage | 50 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Max Generator Input | 50 |
Max Utility Input | 200 |
Running Wattage | 12500 |
Transfer Switch Style | Service Disconnect |
Voltage | 120, 240 |
Wattage | 12500 |
Warranty and Product Information
CARB approved | Yes |
Certifications | UL |
Manufacturer Warranty | 2 Year |
Warranty and Product Information
CARB approved | Yes |
Certifications | UL |
Manufacturer Warranty | 2 Year |
