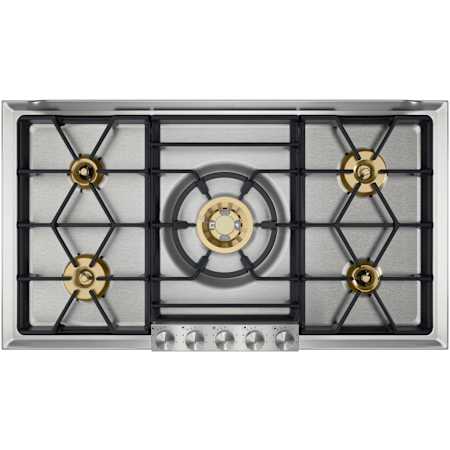

Gaggenau 200 Series 36 Inch Wide 5 Burner Natural Gas Cooktop with Electric Ignition and Brass Burner Rings

Features:

• Control panel for comfortable and secure operation
• Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size
• Multi-ring burner of solid, heat-resistant brass as used in professional kitchen
• Solid smooth-surface cast-Iron pan support
• Up to 59700 BTU (175 kW) on 5 burners

• Control knobs with illuminated ring
• Integrated control panel
• One-handed operation
• Electric ignition
• Three-part cast Iron pan support with flat, continuous pot surface
• Brass burner rings

• Thermoelectric safety pilot
• Residual heat indicator
• Operation indicator

• No intermediate shelf required
• Appliance can be snapped into the countertop from above
• The rear panel must consist of a non-flammable material Wall trims must be resistant to heat
• Installation in a 36" (90 cm) wide base cabinet is required
• Above countertop minimum clearance of at least 11 13/16" from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation must be installed
• Minimum distance between gas cooktop(s) with more than 37,533 BTU (11kW) and ventilation hood must be 30" (76cm)
• Appliance weight: approximately 29 kg
• Connecting cable 59 1/16" (1.5 m) with plug

Specifications:

• Back Left Burner BTU: 600, 6800
• Back Right Burner BTU: 13600, 600
• Front Left Burner BTU: 13600, 600
• Front Right Burner BTU: 600, 6800
• Number of Burners: 5
• Fuel Type: Gas
• Hot Surface Indicator Lights: Yes
• Cutout Depth: 19-3/8"
• Cutout Width: 34-13/16"
• Depth: 20-1/16"
• Height: 4-9/16"
• Width: 36"
• Amperage: 15A
• Voltage: 120V
