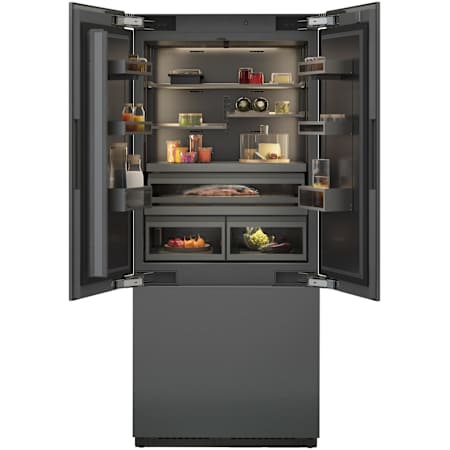

Gaggenau 400 Series 36 Inch Wide 20 Cu. Ft. Energy Star Certified French Door Refrigerator with Fast Cooling and Soft Close

Features:

• 20 cu. ft. capacity and layout meet the needs of today's homes
• LED lighting illuminates interior for better viewing of contents
• Includes an internal water dispenser
• Stainless steel interior, refined with solid anthracite aluminum elements
• Warm white and glare-free LED light concept for optimal food presentation in all compartments
• Opening assist for door enabling seamless integration without handles
• Flexible positioning of shelves and door racks through hidden rail system
• Solid anthracite aluminum door racks
• Professional freshness system with 2 fresh climate drawers and 1 chilled drawer
• Integrated ice maker with fixed water connection
• Spacious, fully extendable freezer compartment including 2 additional interior drawers
• Total volume: 20 cu. ft.
• ENERGY STAR certified

Operation:

• Opening assist for door
• Cushioned door closing system
• Light and display response to drawer interaction
• Automatic brightness adjustment based on ambient illumination
• Easily accessible full touch TFT display
• Clear text display in 44 languages
• Animated quick guides to assist appliance operation

Technical Features:

• Dynamic cold air distribution with Multi-Flow Air System
• Automatic defrosting with defrost water evaporation
• Constant air purification by 2 activated charcoal air filters
• Sabbath mode certified by Star-K
• Open-door and malfunction warning system

Selected digital services (Gaggenau Home Connect):

• Storage management with cameras
• Personalization function for saving custom programs
• Remote control and monitoring

Cooling Compartment:

• Professional freshness system
• No-Frost technology with fast cooling
• Temperature adjustable from 35 °F to 46 °F
• Integrated water dispenser
• 3 aluminum-framed safety glass shelves, individually adjustable in height
• 1 integrated safety glass shelf with satin matte finish
• Optimal food presentation with warm white and glare-free, hidden LED light bars (3000 K)
• Flexible positioning of door racks through hidden rail system
• 6 door racks, 4 height adjustable
• Total volume of all refrigerator compartments: 13.2 cu. ft.

Fresh Climate Drawer:

• 2 fresh climate drawers with humidity control
• Temperature adjustable from 30°F to 36°F (-1 °C to +2 °C)
• Ideal storage conditions for different foods through dedicated programs (eg Fruit, Vegetables, Meat)
• Individual adjustment of temperature and humidity
• Extended food preservation with ethylene absorber
• Indirect illumination, transparent front
• Fully extendable, with soft closing system

Chilled Drawer:

• Temperature dependent on cooling compartment (always 2 to 3 degrees lower)
• Indirect illumination, transparent front
• Fully extendable, with soft closing system

Freezer Compartment:

• No-frost technology with fast freezing at -15 °F (-30 °C)
• 4-star freezer compartment
• Temperature adjustable from -11 °F to 3 °F (-24 °C to -16 °C)
• Freezer burn protection
• Oxidation protection
• Storage time after a malfunction 10 hr.
• Spacious, fully extendable freezer compartment with synchronously running pull-out rails
• 2 extendable interior drawers
• Warm-white, glare-free LED lighting (3000 K) within freezer compartment
• Total volume of freezer compartment: 6.8 cu. ft.

Ice Dispenser:

• Integrated automatic ice maker in the freezer compartment, with fixed water connection
• Ice maker can be switched off independently
• Active charcoal water filter for water inlet, integrated in ventilation grill area
• Saturation indicator for filter via full touch TFT display
• Ice cube production: approximately 55 lb./24 h
• Removable ice storage container with approximately 66 lb. capacity
• Integrated, easy accessible ice cube scoop

Consumption Data:

• Energy consumption 597 kWh/year
• Noise level 39 dB (re 1 pW)

Planning notes:

• Flat hinge
• Door opening angle of 115°, fixable at 90°
• Max door panel weight: Door 141 lbs. (64 kg) Drawer 30 lbs. (14 kg)
• When rest mode is active, the appliance can only be opened using a handle
• Shut-off valve for water connection must be planned next to the appliance and always be accessible
• If the water pressure exceeds 116 psi, connect pressure relief valve between water tap and hose set

Rating:

• Total rating 1079 kWh/24 h
• Total Amps: 10 A
• Connecting cable 118" (30 m), detachable
• Cold water connection required
• Electrical location 6" above ground in lower left corner of unit
• Supply hose 70 7/8" with ¼" male compression fitting (standard ice-maker connector)
• Water pressure 29 psi to 116 psi

Specifications:

• Total Capacity: 20 Cu. Ft.
• Bulb Type: LED
• Shelf Material (Refrigerator): Glass
• Counter Depth: No
• Depth: 24"
• Height: 83-7/8"
• Width: 35-3/16"
• Amperage: 10A
• Voltage: 120V
