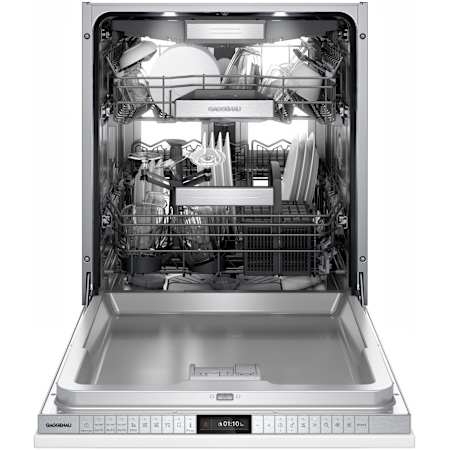

Gaggenau 400 Series 24 Inch Wide 13 Place Setting Built-In Top Control Dishwasher with Soft Lock and Automatic Detergent Function

Features:

• Accommodates 13 place settings
• Easy to use touch controls for mode selection
• Comes equipped with 8 wash cycles
• Ultra-quiet operation rated at 42 dB is not disruptive
• Optimal protection for sensitive glassware by low temperature drying with zeolite, optimized basket design and intelligent water softening
• Flexible basket system with smooth running rails on all levels and cushioned closing of the upper and lower baskets
• Perfectly illuminated interior
• Push-to-open function for perfect integration into custom cabinet fronts

• TFT display indicating remaining or end time, refill for salt and rinsing agent, inflow of water
• Touch key operation
• Flexible cycle time reduction, even during an active cycle
• Personalization function for storing individual combinations of programs
• Information key with use indicators
• Sanitized indicator in the control panel
• Time delay up to 24 hours
• Visual and acoustic end of program indicator
• Remaining time projection

• Perfectly illuminated interior
• Glass protection with zeolite
• Aqua sensor
• Load sensor
• Automatic detergent function
• Regeneration electronics
• Flow-Through Water Heater™
• Triple filter system
• Soft lock
• Aqua stop
• Program assistant
• Temporary noise reduction (only available with active Home Connect functionality)
• Home network integration for digital services (Home Connect) wireless via WiFi
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com
• Intensive Plus Power Sanitize Extra Dry with zeolite
• Machine Care

• Flexible rack system with smooth running rails on all levels and soft-closing system of the upper and lower rack

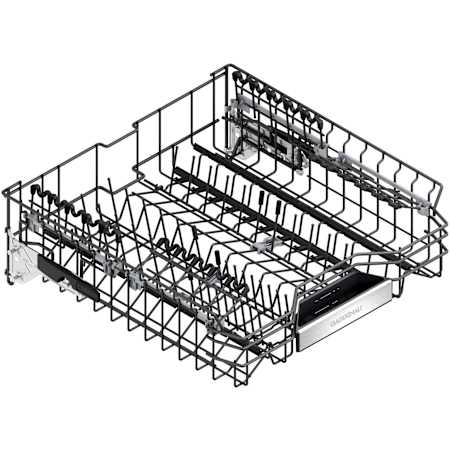

• Over extension Rackmatic with 3 levels, adjustable in height up to 2" (5 cm) 6 folding spines 4 folding racks for optimal protection of glass

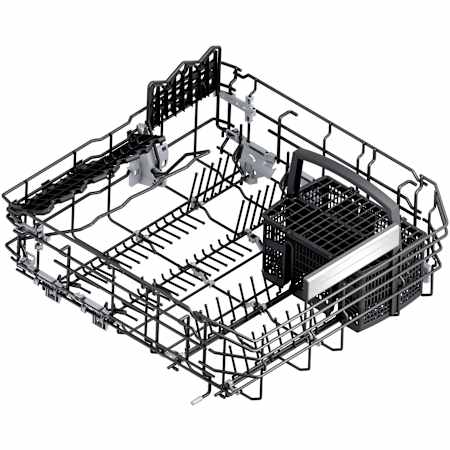

• Motorized spray arm 8 folding spines 2 folding racks for optimal protection of glass. Dividable glass support
• Holder for long-stemmed glasses
• Maximum glass loading capacity 23 wine glasses

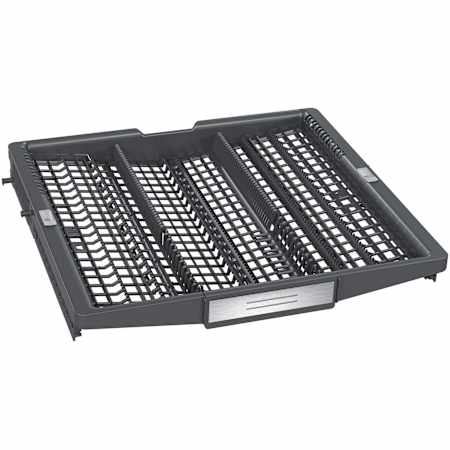

• 3rd rack for cutlery

• ENERGY STAR certified

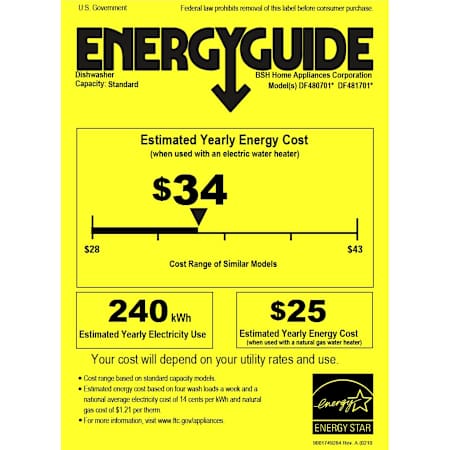

• Total annual energy consumption 240 kWh
• Total annual water consumption 505 gallons

• Height-adjustable feet

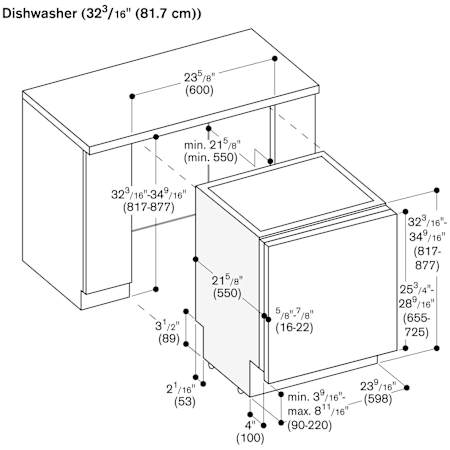

• Appliance toe-kick recess 3 15/16" (see drawing)
• To display the remaining time projection, a minimum toe-kick protrusion is required (1 9/16" + thickness of the cabinet front)
• The maximum toe-kick height must be reduced by 1 1/16" to provide an optimal display of the remaining time projection
• Rear feet adjustable at front
• Door weight up to 18 lb.
• Door panel dimension dependent on toe-kick height of kitchen cabinetry
• Installation and usage also with custom cabinet handle possible. The push-to-open function remains active

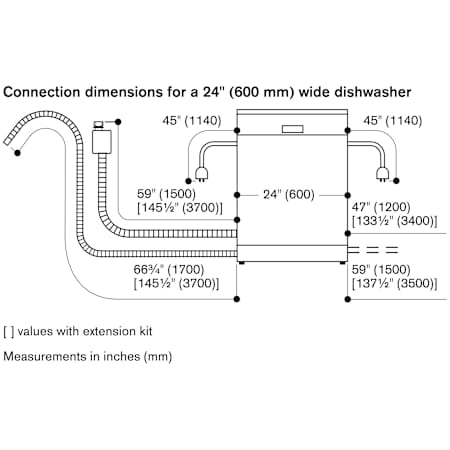

• Connecting cable 47 1/4" with Three-prong plug (NEMA 5-15P)
• Water connection with 3/4" screw joint
• Connection to hot or cold water possible
• Power consumption standby/network 20 W
• Time auto-standby/network 2 min
• Please check the user manual for how to switch off the WiFi module

Specifications:

• Place Setting Capacity: 13
• Number of Cycles: 8
• Number of Racks: 3
• Control Type: Touch
• Cutlery Tray: Yes
• dB Rating: 42
• Depth: 21-5/8"
• Height: 32-3/16"
• Width: 23-9/16"
• Amperage: 12A
• Voltage: 120V
