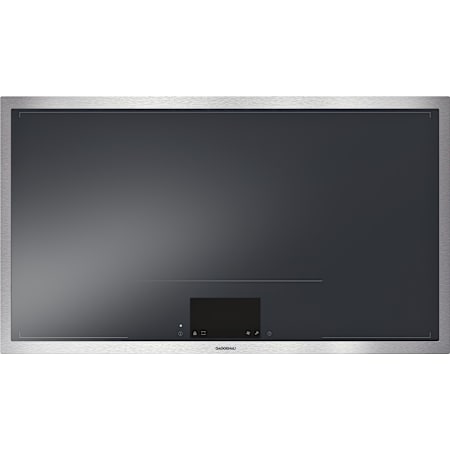

Gaggenau 400 Series 36 Inch Wide 5 Burner Electric Cooktop with Cooking Sensor and Cooktop Based Ventilation Control

Features:

• One large cooking surface
• Free positioning of cookware
• All sizes and formats of cookware can be used
• TFT touch display for an intuitive control of all functions
• Cooking sensor function for temperature control in pots
• Professional cooking functions
• Max power output for big cookware of up to 5.5 KW
• Precision crafted 3mm stainless steel frame
• For surface-mount installation with a visible edge or for flush installation
• Can be perfectly combined with other Vario 400 series appliances
• Up to 6 items of cookware can be placed simultaneously on the cooktop.
• Easy to use color graphic TFT touch display with an easy-to-use display concept
• Electronic power control in 17 output levels
• Cooking sensor function
• Professional cooking function
• Dynamic cooking function
• Teppan Yaki function
• Booster function for pots
• Booster function for pans and pots
• Keep warm function
• Individual pot detection
• Stopwatch
• Short-term timer
• Information key with use indicators
• Power management
• Cooktop-based ventilation control (with suitable hood)
• Home network integration for digital services (Home Connect) wireless via WiFi
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com

Safety:

• Residual heat indicator
• Child lock
• Safety shut-off
• Pause function

Planning notes:

• Depending on the type of installation (surface-mounted or flush-mounted), the specific definition of the cut-out must be observed
• If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided
• The bearing capacity and stability in the case of thin countertops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads
• Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer
• The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining
• The joint width may vary due to size tolerances of the combinations and of the countertop cut-out
• If installing several appliances in individual cut-outs allow for a division bar of minimum 2" (50 mm) between the individual cut-outs
• Operates with magnetic (induction)
• Iron pots and pans only. For an optimal heat distribution, the use of flat bottom cookware is recommended
• Appliance can be snapped into the countertop from above
• Appliance weight: approximately. 34 kg.
• Plan for a 37" connecting cable
• Please check the user manual for how to switch off the WiFi module.

Specifications:

• Number of Burners: 5
• Fuel Type: Electric
• Hot Surface Indicator Lights: Yes
• Cutout Depth: 19.375, 20.6875"
• Cutout Width: 34.9375, 36"
• Depth: 20-1/2"
• Height: 4-1/8"
• Width: 35-3/4"
• Amperage: 30A
• Voltage: 208, 240V
