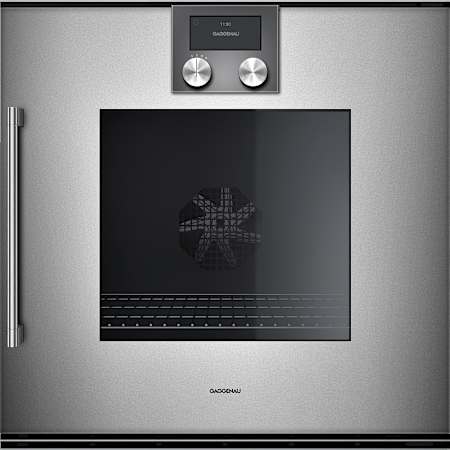

Gaggenau 200 Series 24 Inch Wide 3.1 Cu. Ft. Electric Single Oven with Safety Shut Off and Child Lock

Features:

• 3.1 cu. ft. capacity meets the needs of most homes in a space saving design
• Easy to use controls
• Convection baking provides even heat distribution for improved browning and crisping
• Enjoy the convenience of self-cleaning
• Oven includes meat thermometer, sabbath mode, and viewing window
• The 3-point core temperature sensor measures precisely the temperature and revises the cooking times as the dish is cooking.
• Flush installation
• Pyrolytic self-cleaning system
• Universal heating system with 13 heating modes, with meat probe and baking stone operation
• Automatic programs
• Core temperature probe with estimation of cooking time
• Panel-free appliance with surface control module
• Electronic temperature control from 85°F - 550°F
• Net volume (76 liters)

• Convection
• Economy convection Top + bottom heat Top heat Bottom heat Convection + bottom heat, Convection broiling, Broiling, Economy broiling, Baking stone operation, Roaster operation, Dough proofing and Defrosting

• Rotary knob and TFT touch display operation
• Clear text display in 44 languages
• Option to save 50 individual recipes (incl core temperature probe)
• Personalization of automatic programs
• Information key with use indicators
• Side-opening door opens up to 110° angle
• Three-point core temperature prove with automatic shut-off and estimation of cooking time
• Automatic programs
• Baking stone outlet
• Actual temperature display
• Fast heating setting
• 60 W halogen light on the top
• Enameled side shelf supports with 4 tray levels, pyrolysis-safe
• Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com

• Thermally insulated door with quintuple glazing
• Child lock
• Safety shut-off
• Cooled housing with temperature protection

• Pyrolytic self-cleaning
• Gaggenau Clean-Enamel
• Heated air cleaning catalyst

• Door hinge not reversible
• The door panel front of the appliance extends 13/16" from the cabinet front
• The outer edge of the door handle extends 2 13/16" from the cabinet front
• Necessary lateral gap between appliance door and cabinet front of min 3/16"
• Consider the overhang, incl the door handle, when planning to open drawers next to the appliance
• When planning a corner solution, pay attention to the 110° door opening angle
• For installation underneath cooktops:
• Distance between the underside of the cooktop and the top edge of the oven cavity: min 9/16" The planning notes for the cooktops (particularly regarding ventilation, gas/ electric connection) must be taken into account
• To achieve the 21 ?" (550 mm)
• installation depth, the connection cable needs to follow the slanted edge on the corner of the housing
• Plan a power outlet outside of the cut-out niche
• The LAN port can be found at the back on the upper right side

• Total rating 4.0 KW
• Total Amps: 17 A
• 208 - 240 V / 60 Hz
• Connecting cable 63" without plug (hardwire required)
• Plan for an ethernet / LAN cable or connect via WiFi
• Power consumption standby/display off 05 W
• Power consumption standby/network 14 W
• Time auto-standby/network 20 min
• Please check the user manual for how to switch off the WiFi module

Specifications:

• Total Capacity: 3.1 Cu. Ft.
• Convection: Yes
• Sabbath Mode: Yes
• Self Cleaning: Yes
• Depth: 22-3/8"
• Height: 23-7/16"
• Width: 23-1/4"
