Gaggenau
Finish: Gaggenau 400 Series 30 Inch Wide 1.3 Cu. Ft. 3100 Watt Built In Microwave with Child Lock and 4 Rack Levels Stainless Steel
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Finish: Gaggenau 400 Series 30 Inch Wide 1.3 Cu. Ft. 3100 Watt Built In Microwave with Child Lock and 4 Rack Levels Stainless Steel
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Item # bci5034670
Ferguson Showroom Only

Gaggenau 400 Series 30 Inch Wide 1.3 Cu. Ft. 3100 Watt Built In Microwave with Child Lock and 4 Rack Levels

Model: BM485710
|
Item: bci5034670

Visit Showroom for Price

Finish: Stainless Steel -
Special Order

Ferguson Home is a Ferguson Company.Purchase this product at a Ferguson Showroom near you.

Details

Features:

  • 1.3 cu. ft. capacity meets the needs of most modern homes
  • Easy to use knob, touch controls
  • Handleless door / automatic door opening
  • Single operation and combination of microwave, grill and oven
  • Sequential operation of up to 5 modes incl programming of combined operation and rest time
  • Electronic temperature control
  • Net volume 13 cu. ft.
Programs:
  • Microwave operation with 5 output levels: 1000, 600, 360, 180, 90 W
  • Oven operation with 4 heating methods
  • Heating methods with microwave output levels 600, 360, 180 and 90 W freely combinable
  • 15 automatic programs with weight indication, customizable:
  • 4 defrosting programs 4 cooking programs 7 combination programs
  • Option to save 50 individual recipes
  • Sabbath mode with constant temperature of 185 °F
Operation:
  • One touch control panel and an interactive visual display
  • Information key with use indicators
  • Side-opening door opens up to 180° angle
  • Innowave
  • Fast heating setting
  • Four rack levels
  • Actual temperature display
  • 60 W halogen light on the side
Safety:
  • Thermally insulated door with triple glazing
  • Child lock
  • Safety shut-off
  • Cooled housing with temperature protection
Cleaning:
  • Hygienic stainless steel interior with glass ceramic base
  • Interior back wall with catalytic coating

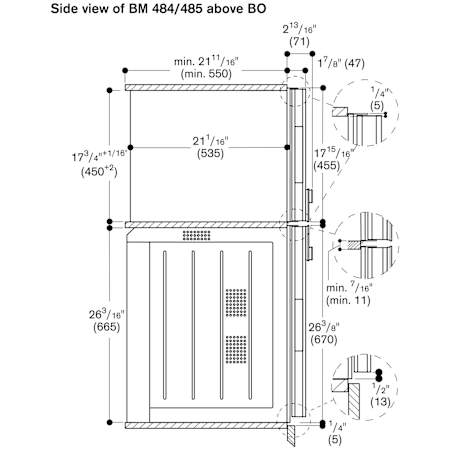

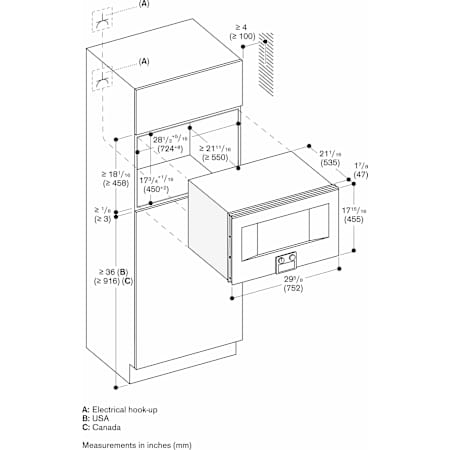

Planning notes:
  • Door hinge not reversible
  • The front of the appliance extends 1 7/8 " from the furniture cavity
  • If the handle (optional accessory) is retrofitted, the outer edge of the door handle extends 3 11/16" (94 mm) from the furniture cavity
  • Consider the overhang, incl the door handle where applicable, when planning to open drawers next to the appliance
  • The power outlet needs to be planned outside of the niche
Rating:
  • Total rating 31 KW
  • Total Amps: 2*20 A
  • 240 / 208 V / 60 Hz
  • Connecting cable 59 1/16 " without plug (hardwire required)

Specifications:

  • Total Capacity: 1.3 Cu. Ft.
  • Depth: 22-15/16"
  • Height: 17-15/16"
  • Width: 29-5/8"
  • Amperage: 20A
  • Voltage: 120, 208, 240V
  • Wattage: 3,100W

Manufacturer Resources

Installation SheetOwner's Manual

Dimensions and Measurements

Cord Length
59.06 in.
Cutout Width
28.5 in.
Depth
22.9375 in.
Height
17.9375 in.
Nominal Depth
23 in.
Nominal Height
18 in.
Nominal Width
30 in.
Product Weight
94.14 lbs.
Total Capacity
1.3 cu. ft.
Width
29.625 in.

Dimensions and Measurements

Cord Length
59.06 in.
Cutout Width
28.5 in.
Depth
22.9375 in.
Height
17.9375 in.
Nominal Depth
23 in.
Nominal Height
18 in.
Nominal Width
30 in.
Product Weight
94.14 lbs.
Total Capacity
1.3 cu. ft.
Width
29.625 in.

Included Components

Baking Element
Yes
Clock
Yes

Included Components

Baking Element
Yes
Clock
Yes

Characteristics and Features

Air Fry
No
Broil Element
Yes
Control Type
Knob, Touch
Convection
Yes
End of Cycle Indicator
Yes
Fingerprint Resistant
No
Installation Type
Built-In
Panel Ready
No
Sabbath Mode
Yes
Sensor Cooking
No
Turntable
No

Characteristics and Features

Air Fry
No
Broil Element
Yes
Control Type
Knob, Touch
Convection
Yes
End of Cycle Indicator
Yes
Fingerprint Resistant
No
Installation Type
Built-In
Panel Ready
No
Sabbath Mode
Yes
Sensor Cooking
No
Turntable
No

Electrical and Operational Information

Amperage
20
Frequency
60 Hertz
Fuel Type
Electric
Voltage
120, 208, 240
Wattage
3100

Electrical and Operational Information

Amperage
20
Frequency
60 Hertz
Fuel Type
Electric
Voltage
120, 208, 240
Wattage
3100

Warranty and Product Information

Collection
400 Series
Title 20 Compliant
Yes

Warranty and Product Information

Collection
400 Series
Title 20 Compliant
Yes
