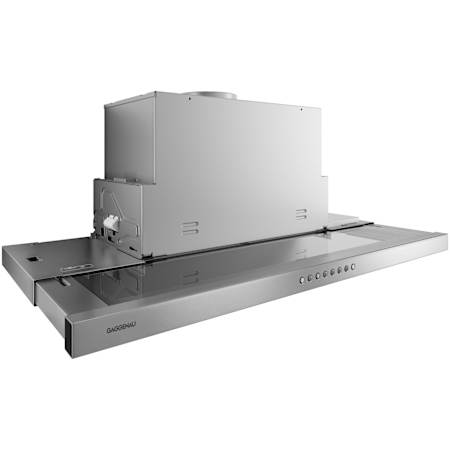

Gaggenau 200 Series 90 - 370 CFM 36 Inch Wide Range Hood Insert with 3 Speeds and Push Button Controls

Features:

• Blower outputs up to 370 CFM to keep your kitchen free of cooking fumes and odors
• Baffle filters effectively trap and filter out unwanted smoke, odors, and grease
• lighting illuminates the cooking area
• Push button controls allow you to easily set the power level of your range hood
• 3 available speeds provide just the right amount of ventilation
• Unobtrusive visor hood design thanks to integrated glass panel in the steam screen
• Especially quiet operation thanks to integrated sound insulation
• Steam screen extends by touching the handle bar
• Especially high air output
• Dimmable, neutral white LED light for ideal illumination of the whole cooktop
• The patented lowering frame allows the visor hood to disappear completely into the upper cabinet
• Air extraction or air recirculation system
• Air recirculation module with activated charcoal filter: quiet and highly efficient air recirculation solution with odor reduction as in air extraction mode and long replacement intervals

• Air extraction:
• 622 / 875m³/h
• 64 / 71dB (A) re 1 pW
• 51 / 58 dB (A) re 20 ?Pa
• odor reduction air recirculation 94 %
• Controls at front
• 3 electronically controlled power levels and 1 intensive mode
• Grease filter saturation indicator
• Neutral white LED light (3600 K), continuously dimmable
• Illuminance 441 lx
• Light can be switched on separately
• Integrated sound insulation for quiet operation
• The fan is activated when the steam screen is extended
• Patented technology for extension of the steam screen
• Extendable steam screen up to 7 13/16
• Airflow-optimized interior for efficient air circulation and ease of cleaning
• Patented easy mounting system for simple installation
• The package includes an one-way flap

• Patented air recirculation module with activated charcoal filter can be installed in the upper cabinet. The activated carbon filter can be changed from the front by simply pulling out the activated charcoal filter
• The door of the upper cabinet must be fully open in order to change the activated charcoal filter
• To be installed in an upper cabinet without base
• The required cavity depth of the upper cabinet together with the lowering frame measures 13 3/16" (335mm)
• The required cavity height of the upper cabinet together with the lowering frame measures 23 5/8
• Clearance above gas appliances min 65 cm.(more than total load gas 12 kW min 70 cm)
• Clearance above electric appliances min 28"
• When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch

• Total rating: 430 W
• Total amps: 10 A
• 120 V / 60 Hz
• Connecting cable 354" with plug

Specifications:

• CFM: 200, 370, 90
• Sones: 1.5, 6
• Nominal Width: 36"
• Width: 35-3/8"
• Height: 14-7/8"
• Depth: 12-5/8"
• Amperage: 10A
• Voltage: 120V
• Wattage: 430W
