Franklin Electric

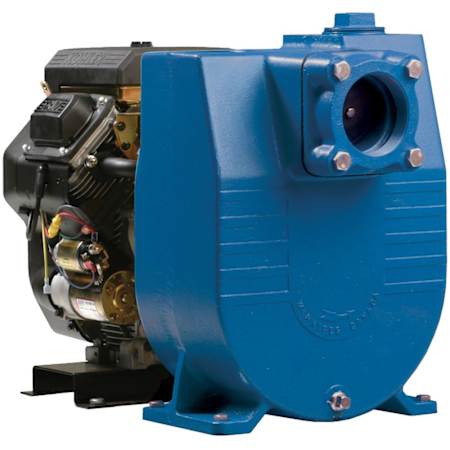

Franklin Electric 400 GPM (4") Water Pump with Elecrtric Start Kohler CH620 Engine N/A

Franklin Electric 400 GPM (4") Water Pump with Elecrtric Start Kohler CH620 Engine

Model: 90281218
|
Item: bci5172022

$10,814.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Product Information:

  • FPS FMIG30-18K - 4" General Purpose Water/Transfer Pump: Ideal choice for water transfer applications and temporary irrigation

  • Electric Start (Battery and Cables Not Included): Makes starting this pump an easy task

  • 624cc Kohler CH620 OHV Engine: Offers dependable power for your pumping needs

  • Low Oil Shut-Off: Helps extend engine life

  • Heavy-Duty Cast Iron Pump Casing and Volute: Provides added protection and extends the life of the pump

  • Semi-Open Cast Iron Impeller
    • Can handle small quantities of mud, sand, or silt up to 10% by volume
    • Replaceable steel wear plate for maintaining maximum pump efficiency

  • Carbon/Ceramic FKM/316SS Mechanical Shaft Seal: Designed for the toughest applications

  • Self-Priming Design (After Initial Prime): With priming and drain plugs

  • 3" NPT Suction / Discharge: Allows for maximum performance

  • Base-Mounted Design: Makes this pump to transport and set-up

  • 1-Year Warranty

  • Please Note - Battery, Fuel Tank, and Cables Not Included

Additional Franklin Electric Links

Dimensions and Measurements

Flow Rate (GPM)
400
Height
28.25 in.
Inlet Diameter
4 in.
Length
29.95 in.
Outlet Diameter
4 in.
Product Weight
320 lbs.
Width
17.74 in.

Dimensions and Measurements

Flow Rate (GPM)
400
Height
28.25 in.
Inlet Diameter
4 in.
Length
29.95 in.
Outlet Diameter
4 in.
Product Weight
320 lbs.
Width
17.74 in.

Characteristics and Features

Engine Brand
Kohler
Engine Low Oil Shutdown
Yes
Handles Solids
No
Impeller Material
Cast Iron
Mechanical Seal Material
Ceramic Carbon
Submersible
No

Characteristics and Features

Engine Brand
Kohler
Engine Low Oil Shutdown
Yes
Handles Solids
No
Impeller Material
Cast Iron
Mechanical Seal Material
Ceramic Carbon
Submersible
No

Electrical and Operational Information

Cubic Capacity
624 cc
Engine Cycles
4-Cycle
Maximum Operating Pressure (PSI)
120
Quick Clean Out
No
Self Priming
Yes
Starting System
Recoil Start
Suction Head
26 ft.

Electrical and Operational Information

Cubic Capacity
624 cc
Engine Cycles
4-Cycle
Maximum Operating Pressure (PSI)
120
Quick Clean Out
No
Self Priming
Yes
Starting System
Recoil Start
Suction Head
26 ft.

Warranty and Product Information

Manufacturer Warranty
1 Year

Warranty and Product Information

Manufacturer Warranty
1 Year
