Franklin Electric
Franklin Electric 135 GPM (2") Water Pumps with Briggs and Stratton XR Engine N/A

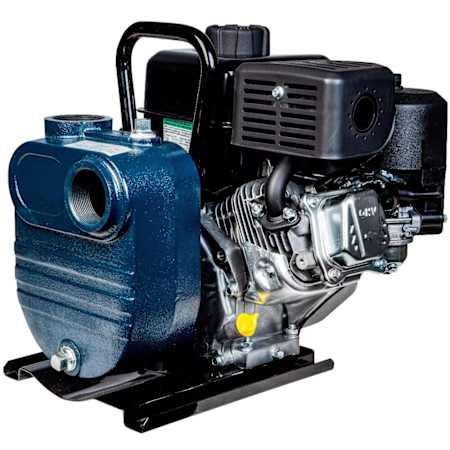

Franklin Electric 135 GPM (2") Water Pumps with Briggs and Stratton XR Engine

Model: 90271008
|
Item: bci5171991

$1,556.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

Product Information:

  • 2" General Purpose Dewatering Pump

  • FPS FBSGF-8 - 2" General Purpose Water/Transfer Pump
    • Ideal choice for water transfer applications and temporary irrigation
    • Centrifugal, self-priming design

  • 127cc Briggs and Stratton XR SeriesOHV Engine

  • Commercial Grade 4-HP Honda OHV GX120 4-Cycle Engine
    • Reliable, technologically advanced and easy to start
    • Offers dependable power for your pumping needs

  • Heavy-Duty Cast Iron Pump Casing and Volute: Provides excellent torque and fuel efficiency

  • Protected By Honda Oil Alert Warning System: Provides added protection and extends the life of the pump

  • Semi-Open Cast Iron Impeller
    • Alerts you or shuts engine down if oil reaches an unsafe level
    • With "blind hole" for engine shaft protection
    • Helps to prevent engine seizure due to a low oil condition

  • Carbon/Ceramic FKM/316SS Mechanical Shaft Seal
    • Designed for the toughest applications
    • Provides enhanced durability against wear and tear
    • Will pass solids up to 3/8"

  • 2" NPT Suction / Discharge: Allows for maximum performance

  • Die Cast Aluminum Pump Casing

  • Base-Mounted Design with Built-In Handle: Reduces overall weight of the pump w/o compromising durability

  • Silicon Carbide Mechanical Seal: Makes this pump to transport and set-up

  • 1-Year Warranty: Provides the longest life in this class

  • .66-Gallon Fuel Tank: Provides up to 3 hours of continuous run time

  • Durable Rolled-Steel frame: Provides maximum protection and makes transporting easy

  • 2-Year Limited Warranty

Additional Franklin Electric Links

Manufacturer Resources

Product ManualSpecification Sheet

Dimensions and Measurements

Flow Rate (GPM)
135
Fuel Tank Capacity
0.75 Gallons
Height
14 in.
Inlet Diameter
2 in.
Length
15.25 in.
Outlet Diameter
2 in.
Product Weight
65 lbs.
Width
13.25 in.

Dimensions and Measurements

Flow Rate (GPM)
135
Fuel Tank Capacity
0.75 Gallons
Height
14 in.
Inlet Diameter
2 in.
Length
15.25 in.
Outlet Diameter
2 in.
Product Weight
65 lbs.
Width
13.25 in.

Characteristics and Features

Engine Brand
Briggs and Stratton
Engine Low Oil Shutdown
No
Handles Solids
No
Impeller Material
Cast Iron
Mechanical Seal Material
Silicon Carbide
Submersible
No

Characteristics and Features

Engine Brand
Briggs and Stratton
Engine Low Oil Shutdown
No
Handles Solids
No
Impeller Material
Cast Iron
Mechanical Seal Material
Silicon Carbide
Submersible
No

Electrical and Operational Information

Cubic Capacity
127 cc
Engine Cycles
4-Cycle
Maximum Operating Pressure (PSI)
120
Quick Clean Out
No
Self Priming
Yes
Starting System
Recoil Start
Suction Head
26 ft.

Electrical and Operational Information

Cubic Capacity
127 cc
Engine Cycles
4-Cycle
Maximum Operating Pressure (PSI)
120
Quick Clean Out
No
Self Priming
Yes
Starting System
Recoil Start
Suction Head
26 ft.

Warranty and Product Information

Manufacturer Warranty
1 Year

Warranty and Product Information

Manufacturer Warranty
1 Year
