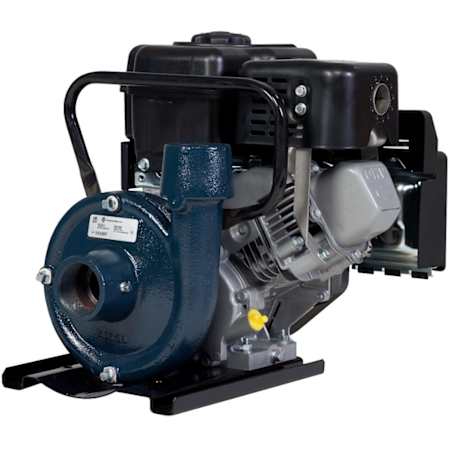

Franklin Electric 110 GPM (2") High Pressure Water Pump with Honda GX160 Engine
Model: 90261105|Item: bci5172201
Details
Product Information:
- FPS FACGF-5H - 2" General Purpose Water/Transfer Pump: For mining, irrigation, construction and other heavy-duty applications
- 160cc Honda GX160 OHV Engine: Offers reliable power for your pumping needs
- Low Oil Shut-Off: Helps extend engine life
- Heavy-Duty Cast Iron Pump Casing, Volute and Closed-Impeller: Provides added protection and extends the life of the pump
- Carbon/Ceramic Viton/316SS Mechanical Shaft Seal: Designed for the toughest applications
- 2" NPT Suction / Discharge: Allows for maximum performance
- Base-Mounted Design with Built-In Handle: Makes this pump to transport and set-up
- 1-Year Warranty
Dimensions and Measurements
Flow Rate (GPM) | 110 |
Fuel Tank Capacity | 1 Gallons |
Height | 13.92 in. |
Inlet Diameter | 2 in. |
Length | 16.35 in. |
Outlet Diameter | 2 in. |
Product Weight | 62 lbs. |
Width | 15.6 in. |
Dimensions and Measurements
Flow Rate (GPM) | 110 |
Fuel Tank Capacity | 1 Gallons |
Height | 13.92 in. |
Inlet Diameter | 2 in. |
Length | 16.35 in. |
Outlet Diameter | 2 in. |
Product Weight | 62 lbs. |
Width | 15.6 in. |
Characteristics and Features
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Handles Solids | No |
Head Material | Cast Iron |
Impeller Material | Cast Iron |
Mechanical Seal Material | Ceramic Carbon |
Submersible | No |
Characteristics and Features
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Handles Solids | No |
Head Material | Cast Iron |
Impeller Material | Cast Iron |
Mechanical Seal Material | Ceramic Carbon |
Submersible | No |
Electrical and Operational Information
Cubic Capacity | 160 cc |
Engine Cycles | 4-Cycle |
Maximum Operating Pressure (PSI) | 150 |
Quick Clean Out | No |
Self Priming | No |
Starting System | Recoil Start |
Suction Head | 26 ft. |
Electrical and Operational Information
Cubic Capacity | 160 cc |
Engine Cycles | 4-Cycle |
Maximum Operating Pressure (PSI) | 150 |
Quick Clean Out | No |
Self Priming | No |
Starting System | Recoil Start |
Suction Head | 26 ft. |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Manufacturer Warranty | 1 Year |
