Franklin Electric
Franklin Electric Centrifugal 110 GPM (2") High Pressure Dewatering Transfer Water Pump with Briggs and Stratton INTEK Engine N/A

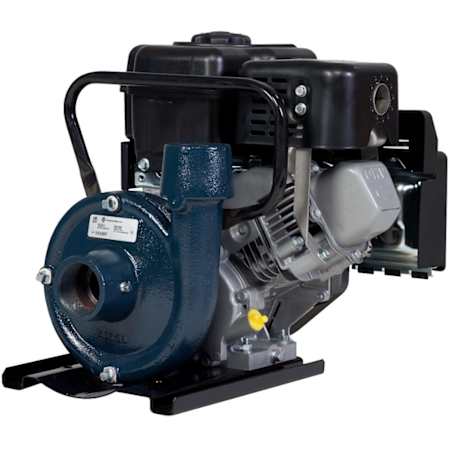

Franklin Electric Centrifugal 110 GPM (2") High Pressure Dewatering Transfer Water Pump with Briggs and Stratton INTEK Engine

Model: 90261005
|
Item: bci5172008

$1,959.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details



Product Information:

  • FPS FACGF-5 - 2" General Purpose Water / Transfer Pump

  • 2" High-Pressure Water Pump
    • For mining, irrigation, construction and other heavy-duty applications
    • Designed for moving water over extended distances or heights
    • Great for firefighting applications
  • 205cc Briggs and Stratton INTEK OHV Engine

  • Commercial Grade Honda GX200 4-Cycle Engine: Offers dependable power for your pumping needs

  • Heavy-Duty Cast Iron Pump Casing, Volute and Closed-Impeller: Reliable, technologically advanced and easy to start

  • Protected By Honda Oil Alert Warning System
    • Provides added protection and extends the life of the pump
    • Alerts you or shuts engine down if oil reaches an unsafe level
  • Carbon/Ceramic Viton/316SS Mechanical Shaft Seal: Designed for the toughest applications

  • Aluminum Pump Housing and Impeller: Extends the life of the pump

  • 2" NPT Suction / Discharge

  • Self-Priming Design
    • Allows for maximum performance
    • Requires initial priming to operate
  • Base-Mounted Design with Built-In Handle

  • Includes:: Makes this pump to transport and set-up

  • 1-Year Warranty: Strainer and Clamps

  • Excellent Consumer Warranty: 1-Year Pump and 3-Year Honda GX Engine

  • EPA Approved and CARB Compliant


  •



Additional Franklin Electric Links

Manufacturer Resources

Product ManualSpecification Sheet

Dimensions and Measurements

Flow Rate (GPM)
110
Fuel Tank Capacity
0.75 Gallons
Height
17.18 in.
Inlet Diameter
2 in.
Length
16.32 in.
Outlet Diameter
2 in.
Product Weight
62 lbs.
Width
14.6 in.

Dimensions and Measurements

Flow Rate (GPM)
110
Fuel Tank Capacity
0.75 Gallons
Height
17.18 in.
Inlet Diameter
2 in.
Length
16.32 in.
Outlet Diameter
2 in.
Product Weight
62 lbs.
Width
14.6 in.

Characteristics and Features

Engine Brand
Briggs and Stratton
Engine Low Oil Shutdown
No
Handles Solids
No
Head Material
Cast Iron
Impeller Material
Cast Iron
Mechanical Seal Material
Ceramic Carbon
Submersible
No

Characteristics and Features

Engine Brand
Briggs and Stratton
Engine Low Oil Shutdown
No
Handles Solids
No
Head Material
Cast Iron
Impeller Material
Cast Iron
Mechanical Seal Material
Ceramic Carbon
Submersible
No

Electrical and Operational Information

Cubic Capacity
205 cc
Engine Cycles
4-Cycle
Maximum Operating Pressure (PSI)
150
Quick Clean Out
No
Self Priming
No
Starting System
Recoil Start
Suction Head
26 ft.

Electrical and Operational Information

Cubic Capacity
205 cc
Engine Cycles
4-Cycle
Maximum Operating Pressure (PSI)
150
Quick Clean Out
No
Self Priming
No
Starting System
Recoil Start
Suction Head
26 ft.

Warranty and Product Information

Manufacturer Warranty
1 Year

Warranty and Product Information

Manufacturer Warranty
1 Year
