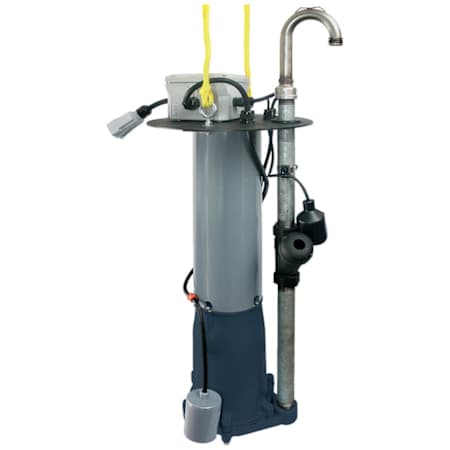

Franklin Electric IGPHR-A-RFK - 2 HP Direct Simplex Replacement High Head Automatic Grinder Pump for PDGS - 20' Leads - Gray Plug Junction Box (230V)

Features:

• FPS - IGPHR-A-RFK - 2 HP Grinder Pump Retrofit Kit 208-230V: Direct simplex replacement grinder for positive displacement grinder systems


• Retrofit Kit (RFK) Features: (Gray Plug Junction Box - See Spec Sheet)
  • Epoxy-coated steel cover w/ Watertight junction box for ease of installation
  • 1-1/4" NPT piping and 1-1/4" cast iron anti-siphon/check valve
  • Adjustable alarm float switch preset at factory and Quick disconnect plug


• FPS - IGPHR-A231-30 - IGPH-A Series Grinder Pump 208-230V
  • For the toughest high head residential and commercial wastewater applications
  • Min Head 100'; Provides up to 200' Max Head


• Epoxy Powder Coated Cast Iron Construction: Provides excellent corrosion-resistance and durability


• Automatic Design (Mechanical Float Included): Start/Run components encased in oil-free chamber requiring no control panel


• 2 HP 3450 RPM Single Phase Motor (208-230V): Built-in overload, over-current and over-temperature protection


• Hardened Stainless Steel, Patented Cutter Design: Tight cutting clearances for superior grinding at 414,000 cuts per minute


• Brass, 7-Vane, Angled Face Impeller: Balanced, non-clogging design for extended pump life


• Carbon and Ceramic Mechanical Seal: Assures maximum protection for extended pump life


• Stainless Steel Shaft w/ Upper/Lower Ball Bearings: Minimizes friction while providing smooth and quiet operation


• 1-1/4" FNPT Discharge: Vertical discharge design for easy installation


• 20' Power Cord


• 2-Year Limited Warranty
