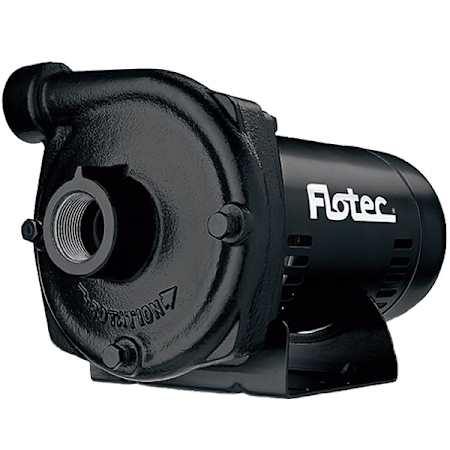

FloTec 22 GPM 1/2 HP Cast Iron Electric Transfer Pump
Model: FP5512-00|Item: bci5172235
Details
Product Information:
- Cast Iron Centrifugal Pump
- 1/2 HP, 22 GPM
- Suction 1-1/4" NPT, discharge 1" NPT
- Economical, General Purpose: Used for water transfer, circulation, fountains, waterfalls, pressure boosting and sprinkling
- Rugged Pump Housing
- Durable, cast iron construction
- Threaded ports for pressure gauge (Not Included) and drain plug
- Superior Performance: At depths to water of 25' or less
- Heavy-Duty Dual-Voltage Motor: Preset at 230-Volts
- Easy Installation: Discharge can be rotated to horizontal or vertical installations
- 1-Year Warranty
Dimensions and Measurements
Flow Rate (GPM) | 22 |
Inlet Diameter | 1.25 in. |
Outlet Diameter | 1 in. |
Product Weight | 30.1 lbs. |
Dimensions and Measurements
Flow Rate (GPM) | 22 |
Inlet Diameter | 1.25 in. |
Outlet Diameter | 1 in. |
Product Weight | 30.1 lbs. |
Characteristics and Features
Housing Material | Cast Iron |
Submersible | No |
Characteristics and Features
Housing Material | Cast Iron |
Submersible | No |
Electrical and Operational Information
Amperage | 4.7, 9.4 |
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 36 |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 4.7, 9.4 |
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 36 |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
