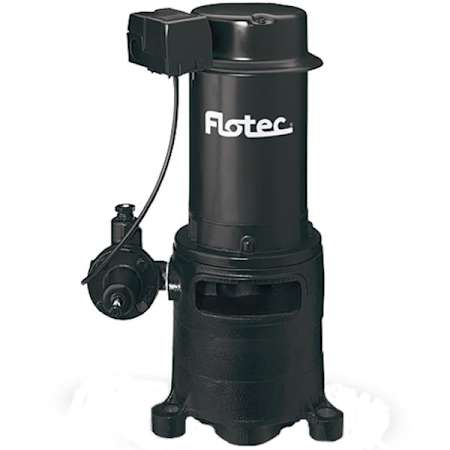

FloTec 12 GPM 1 HP Cast Iron Vertical Deep Well Non-Submersible Pump (115/230V)
Model: FP4432-01|Item: bci5172179
Details
Product Information:
- Cast Iron Vertical Deep Well Pump
- Vertical deep well jet pump can be used in 4" diameter or larger wells up to 260'
- Vertical deep well jet pump can be used in 2" diameter wells up to 180'
- Superior Performance
- Depths to water of 50' or more
- Maximum depth of 260'
- Rugged Housing: Durable cast iron construction
- High Capacity: Up to 12 gallons per minute at 50 PSI
- Heavy-Duty Dual-Voltage Motor: Preset at 230V, also allows for 115V
- Pipe size required:: 1-1/4" suction, 1" drive, 1" discharge
- Prewired Factory-Set 40/60 Pressure Switch
- Pressure gauge and mounting feet also included
- Jet kit sold separately
- 1 Year Limited Warranty
Dimensions and Measurements
Flow Rate (GPM) | 12 |
Inlet Diameter | 1.25 in. |
Outlet Diameter | 1 in. |
Product Weight | 73.2 lbs. |
Dimensions and Measurements
Flow Rate (GPM) | 12 |
Inlet Diameter | 1.25 in. |
Outlet Diameter | 1 in. |
Product Weight | 73.2 lbs. |
Characteristics and Features
Configuration | Deep Well |
Housing Material | Cast Iron |
Submersible | No |
Characteristics and Features
Configuration | Deep Well |
Housing Material | Cast Iron |
Submersible | No |
Electrical and Operational Information
Amperage | 19.2, 9.6 |
Horsepower | 1 |
Suction Head | 260 ft. |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 19.2, 9.6 |
Horsepower | 1 |
Suction Head | 260 ft. |
Voltage | 120, 240 |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
