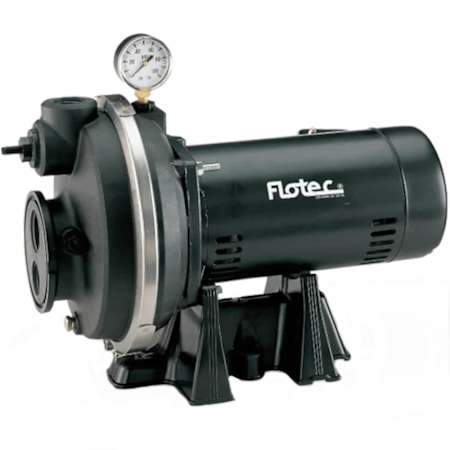

FloTec 7.5 GPM 3/4 HP Thermoplastic Convertible Jet Pump
Model: FP4322-08|Item: bci5172215
Details
Product Information:
- Thermoplastic Convertible Jet Pump: For deep or shallow wells
- Superior Performance
- At depths to water of 110' or less
- Jet kit sold separately
- Rugged Pump Housing
- Fiberglass-reinforced thermoplastic pump housing
- For the highest corrosion resistance
- Heavy-Duty Dual-Voltage Motor: Preset at 230-Volts
- Prewired Pressure Switch
- Preset for 30/50 PSI operation
- Factory-installed 30 PSI gauge
- Self-Priming After Pump Housing Is Initially Filled
- Check valve or foot valve required, sold separately
- Built-in pressure regulator
- 1 Year Limited Warranty
Dimensions and Measurements
Flow Rate (GPM) | 7.5 |
Inlet Diameter | 1.25 in. |
Outlet Diameter | 1 in. |
Product Weight | 27 lbs. |
Dimensions and Measurements
Flow Rate (GPM) | 7.5 |
Inlet Diameter | 1.25 in. |
Outlet Diameter | 1 in. |
Product Weight | 27 lbs. |
Characteristics and Features
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Submersible | No |
Characteristics and Features
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Submersible | No |
Electrical and Operational Information
Amperage | 6.1 |
Horsepower | 0.75 |
Maximum Operating Pressure (PSI) | 52 |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 6.1 |
Horsepower | 0.75 |
Maximum Operating Pressure (PSI) | 52 |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
