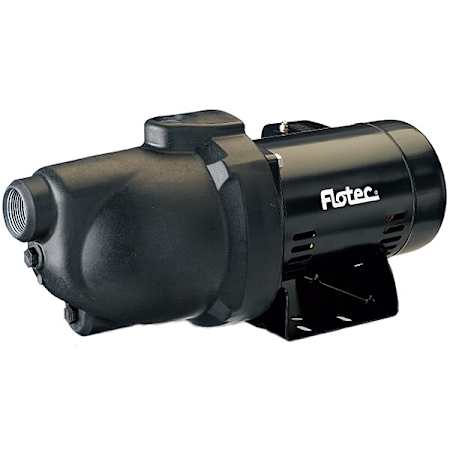

FloTec 12 GPM 3/4 HP Thermoplastic Shallow Well Jet Pump (115V/230V)
Model: FP4022-10|Item: bci5172244
Details
Product Information:
- Thermoplastic Shallow Well Jet Pump: Ideal for residential applications
- Superior Performance
- At depths to water of 25' or less
- 1-1/4" (NPT) Suction / 1" (NPT) Discharge
- Fiberglass-Reinforced Thermoplastic Pump Housing: For the highest corrosion-resistance
- 3/4 HP Heavy-Duty Dual-Voltage Motor: Preset at 230-Volts
- Factory-Installed 30/50 Preset Pressure Switch: Provides reliable operation
- Self-Priming After Pump Housing Is Initially Filled: Check valve or foot valve required, sold separately
- 1 Year Limited Warranty
Dimensions and Measurements
Flow Rate (GPM) | 12 |
Inlet Diameter | 1.25 in. |
Outlet Diameter | 1 in. |
Product Weight | 26.9 lbs. |
Dimensions and Measurements
Flow Rate (GPM) | 12 |
Inlet Diameter | 1.25 in. |
Outlet Diameter | 1 in. |
Product Weight | 26.9 lbs. |
Characteristics and Features
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Submersible | No |
Characteristics and Features
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Submersible | No |
Electrical and Operational Information
Amperage | 12.2, 6.1 |
Horsepower | 0.75 |
Maximum Operating Pressure (PSI) | 78 |
Self Priming | Yes |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 12.2, 6.1 |
Horsepower | 0.75 |
Maximum Operating Pressure (PSI) | 78 |
Self Priming | Yes |
Suction Head | 25 ft. |
Voltage | 120, 240 |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Manufacturer Warranty | 1 Year |
