FloTec 10 GPM 1/2 HP Deep Well Submersible Pump (3-Wire 230V) with Control Box
Model: FP3212-13|Item: bci5172191
Details
Product Information:
- 3-Wire, 4" Submersible Well Pump
- 3 wires plus ground wire
- 230-Volt power (10 amp breaker recommended)
- Control box included
- For Residential and Agricultural Water Systems: Provides optimum amount of water and pressure for general home and farm use
- High Performance
- Proven floating stack impeller design
- For sand resistance and reduced sand locking
- Durable Construction
- Stainless steel pump and motor housing
- Corrosion-resistant for long pump life

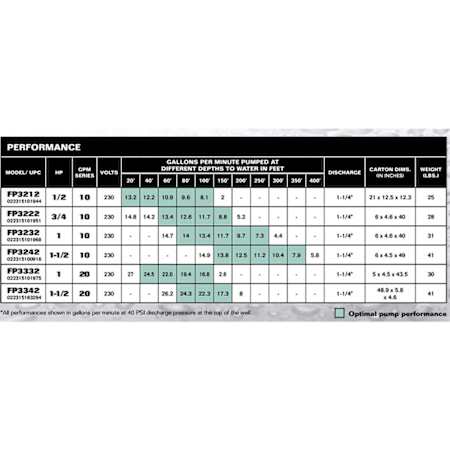

- Designed For Wells 20' - 150' In Depth: Pumps up to 486 GPH @ 100' Depth - (40 PSI)
- Designed For 4" Wells Or Larger: 1-1/4" NPT discharge
- 3 Year Limited Warranty
Dimensions and Measurements
Flow Rate (GPM) | 10 |
Outlet Diameter | 1.25 in. |
Product Weight | 34 lbs. |
Width | 3.78 in. |
Dimensions and Measurements
Flow Rate (GPM) | 10 |
Outlet Diameter | 1.25 in. |
Product Weight | 34 lbs. |
Width | 3.78 in. |
Characteristics and Features
Housing Material | Stainless Steel |
Impeller Material | Plastic |
Submersible | Yes |
Characteristics and Features
Housing Material | Stainless Steel |
Impeller Material | Plastic |
Submersible | Yes |
Electrical and Operational Information
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 105 |
Voltage | 240 |
Electrical and Operational Information
Horsepower | 0.5 |
Maximum Operating Pressure (PSI) | 105 |
Voltage | 240 |
Warranty and Product Information
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Manufacturer Warranty | 3 Year |
