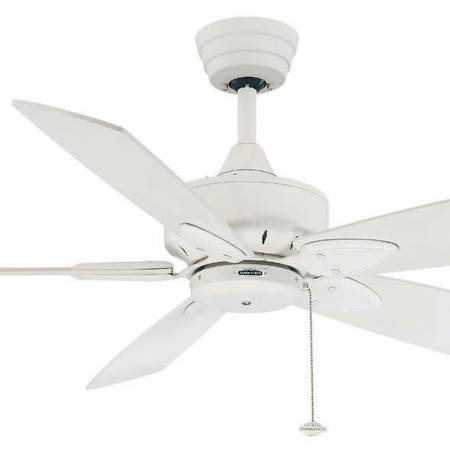

Fanimation Windpointe 52" 5 Blade Ceiling Fan - Blades Included
Model: FP7510MW|Item: bci2444261
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Included Components:
- (5) All-Weather Matte White Blades
- (1) 6" Downrod
- Pull Chain
- Canopy and Mounting Hardware
Special Features:
- Tropical Paradise - The Windpointe collection draws inspiration from traditional, contemporary, and tropical designs to create a beautiful piece of artwork that complements a variety of interior spaces.
- Energy Efficient 3-Speed Reversible AC Motor
- UL Listed for Damp Locations
- Covered by Fanimation's 1-Year Comprehensive Warranty, plus Limited Lifetime Motor Warranty
- Optional Remote and Wall Controls Available
Blade Specifications:
- Blade Span: 52"
- Number of Blades: 5
- Blade Pitch: 18°
- Blades Included: Yes
Motor Specifications:
- Motor Type: AC Induction
- Speeds: 3
- Reversible Motor: Yes
- CFM (On High Speed): 5483
- RPM (On High Speed): 144
- Voltage: 120
Have a Sloped Ceiling?
The Windpointe can be installed on sloped ceilings up to 30° right out of the box. For ceilings up to 52° you'll need to purchase the SCB1-52 sloped ceiling adapter and a minimum 12" downrod, both of which are offered upon adding this fan to your cart.
Have a High or Low Ceiling?
The Windpointe is designed for installation on standard 8 to 9 foot ceilings. If you ceiling is higher, you'll need to purchase an additional downrod, which will be offered upon adding this fan to your cart. The rule of thumb is that ceiling fans should have a minimum of 7 feet and a maximum of 9 feet of clearance between the bottom of the fan and the floor in order to circulate air efficiently. If you have a low ceiling, purchase the CCK8002 sloped ceiling kit to reduce the hanging height of your fan.

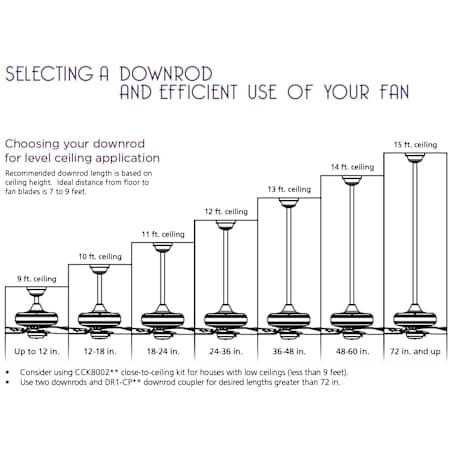

Suggested Downrod Lengths for Tall Ceilings:
- 9 Foot Ceiling: 6" - 12"
- 10 Foot Ceiling: 12" - 18"
- 11 Foot Ceiling: 18" - 24"
- 12 Foot Ceiling: 24" - 36"
- 13 Foot Ceiling: 36" - 48"
- 14 Foot Ceiling: 48" - 60"
- 15 Foot Ceiling: 60" - 72"
- For ceiling heights greater than 15 feet, you'll need to purchase the DR1-CP downrod coupler to join two downrods together.
Dimensions and Measurements
Blade Pitch | 18 Degrees |
Blade Span | 52 in. |
CFM | 5483 |
CFM (High) | 5483 |
Downrod Size(s) | 6 in. |
Height | 14.5 in. |
Product Weight | 25 lbs. |
Width | 52 in. |
Dimensions and Measurements
Blade Pitch | 18 Degrees |
Blade Span | 52 in. |
CFM | 5483 |
CFM (High) | 5483 |
Downrod Size(s) | 6 in. |
Height | 14.5 in. |
Product Weight | 25 lbs. |
Width | 52 in. |
Included Components
Downrod(s) Included | Yes |
Included Components
Downrod(s) Included | Yes |
Characteristics and Features
Control Type | Pull Chain |
Fan Type | Hanging |
Light Kit Compatible | Yes |
Low Ceiling Adaptable | Yes |
Motor | AC Induction |
Number of Blades | 5 |
Reversible Motor | Yes |
Sloped Ceiling Compatible | Yes |
Style | Transitional |
Theme | Transitional |
Characteristics and Features
Control Type | Pull Chain |
Fan Type | Hanging |
Light Kit Compatible | Yes |
Low Ceiling Adaptable | Yes |
Motor | AC Induction |
Number of Blades | 5 |
Reversible Motor | Yes |
Sloped Ceiling Compatible | Yes |
Style | Transitional |
Theme | Transitional |
Electrical and Operational Information
Amperage | 0.37 |
Energy Efficiency (CFM / Watt) | 87 |
RPM (High) | 144 |
Speeds | 3 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 0.37 |
Energy Efficiency (CFM / Watt) | 87 |
RPM (High) | 144 |
Speeds | 3 |
Voltage | 120 |
Warranty and Product Information
Certifications | UL |
Collection | Windpointe |
Location Rating | Damp Location |
Warranty and Product Information
Certifications | UL |
Collection | Windpointe |
Location Rating | Damp Location |
