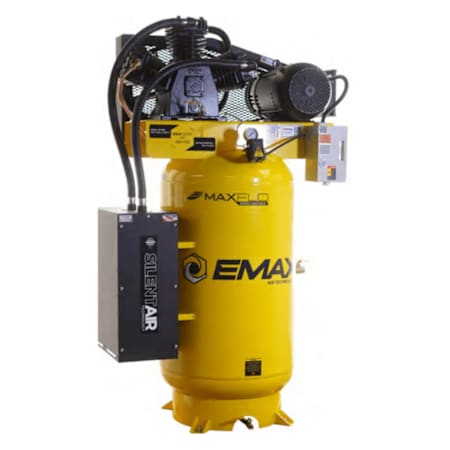

EMAX 7.5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor with MAXFLO

Product Information:

• Patented Silent Air Technology
  • Reduces dBA readings by up to 20%
  • Provides 5-layer filtration ideal for heavy airborne particle work environments
  • Can be installed and operated in all garages, farm shops & industrial applications


• New MAXFLO Technology E250 Series
  • Up to 30% more CFM and energy saving per horsepower
  • Save hundreds or even thousands of dollars with efficient and extreme performance


• 3-Cylinder Two-Stage Solid Cast Iron Pump
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Removable disc industrial valves and two solid steel rods for durability


• 7.5 HP Industrial Grade Motor
  • Open drip proof and two belts for maximum performance
  • Low 1750 RPM motor runs quieter and cooler; lasts longer


• Magnetic Starter: Prewired for a trouble-free operation


• 80 Gallon ASME Air Tank
  • Manual drain for routine draining and 3/4" air outlet
  • Includes isolation pads to lessen vibration and noise


• 1 Year Standard, 5 Year Extended With Purchase of Maintenance Kit EFKIT008AWBS: Please See Warranty Sheet For More Information

Specifications:

• Certifications: ASME, CRN, and ETL
• Fuel Type: Electric
• Height: 71"
• Width: 27"
• Length: 38"
• Product Weight: 830 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 33
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 7.5 HP
• Amperage: 32A
• Voltage: 230V
• Voltage: 230V
