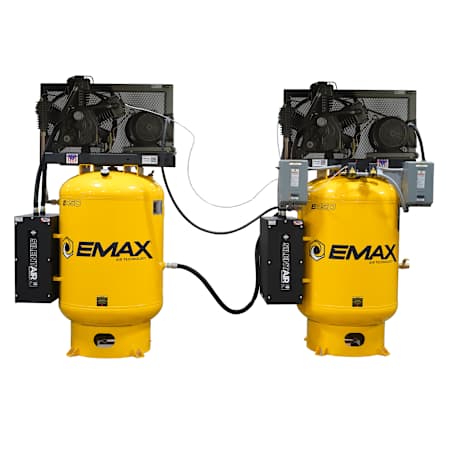

EMAX 15 HP 120 Gal 175 Max PSI Two-Stage Alternating Silent Air Floor Mounted Electric (208, 230 Volt 3 Phase) Air Compressor

EMAX (2) Solo Alternating Silent Air 15HP 3CYL 57CFM (each) 3- Phase 2-Stage 120 Gal. vertical stationary electric air compressor with pressure lube pump, isolator pads, belt tensioner, auto drain, lead / lag alternating switch with radiator after coolers. The benefits to these compressors are the alternating switch that will allow the units to alternate from one pump to another. The unit will pump up to set pressure, then under the next start-up sequence the opposing pump will start. This eliminates excessive running and allows the pumps to cool under heavy loads. These units also have a feature that if one pump will not maintain set pressure and is not keeping up with demand, then both units will come on and run until the unit hits the pressure setting, after which it will go back into normal alternating mode. There are (2) low RPM solid cast iron Patented pressure lubricated pumps paired with (2) industrial grade 1750 RPM motors, (2) Magnetic Starters with a relay switch all installed on (2) ASME certified vertical tanks. This unit has all the features to make using it a breeze from its automatic tank drain to the belt tensioners. These units also feature a Patented Silent Air System silent air system already installed. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry!

Features:

• Two Pressure Lubricated solid Cast Iron Pump with Spin on Oil Filter
• Radiator Aftercooler
• Automatic Timed Tank Drain 110-volt dual timer controlled, eliminates daily maintenance
• ASME /CRN Certified Tank
• Patented Silent Air Technology
• Alternating Switch

Specifications:

• Certifications: ASME, CSA, and ETL
• Fuel Type: Oil
• Height: 84
• Width: 31
• Length: 44
• Product Weight: 1138
• Warranty: 1 Year, 5 Year

Included Accessories:

• Pressure Gauge Included
• Pressure Regulator Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 1"
• Tank Size: 120
• Drive Type: Belt Drive

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Full Pressure Lubrication
• Lubrication Type: Oil Lubricated
• Voltage: 208, 230V

Engine and Motor Specifications:

• Horsepower: 15" HP
