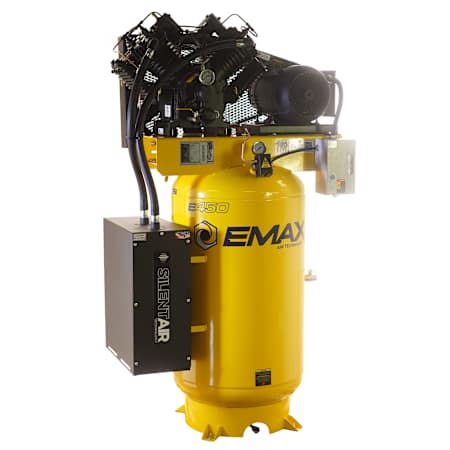

EMAX 7.5 HP 80 Gal 175 Max PSI Two-Stage Silent Air Industrial Floor Mounted Electric (460 Volt 3 Phase) Air Compressor

This EMAX full packaged Industrial Plus 7.5HP 2 Stage V4 3 Phase 208V vertical 80 gallon Piston Air Compressor is designed for up to 60,000 hours of commercial or industrial use with proper maintenance. This unit delivers 31CFM @ 100 PSI, top PSI of 175. EMAX unit features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, radiator aftercooler, along with a continuous run functionality all paired with all cast iron 60,000 Hr. rated patented pressure lubricated reciprocating pump. The unit features a Radiator after cooler lowering the compressor air temperatures to 10 degrees above ambient going into the tank! Although its primary benefit is cooling the compressed air and removing excess moisture, having a radiator aftercooler has further important benefits. This increases the life span of the compressor, helps prevent rust and corrosion in tanks, extends the life of your tools and equipment, increases efficiency while reducing the load on the air dryer which in turn requires the dryer to remove less moisture lowering its operating expenses. This unit features a Patented Silent Air System. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 5 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry!

Features:

• Pressure Lubricated solid Cast Iron Pump with Spin on Oil Filter
• Radiator Aftercooler
• Automatic Timed Tank Drain 110-volt dual timer controlled, eliminates daily maintenance
• ASME /CRN Certified Tank
• Patented Silent Air Technology
• Continuous Run for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor

Specifications:

• Certifications: ASME, CSA, and ETL
• Fuel Type: Oil
• Height: 82
• Width: 27
• Length: 41
• Product Weight: 843
• Warranty: 1 Year, 5 Year

Included Accessories:

• Pressure Gauge Included
• Pressure Regulator Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 80
• Drive Type: Belt Drive

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Full Pressure Lubrication
• Lubrication Type: Oil Lubricated
• Voltage: 460V

Engine and Motor Specifications:

• Horsepower: 7-1/2" HP
