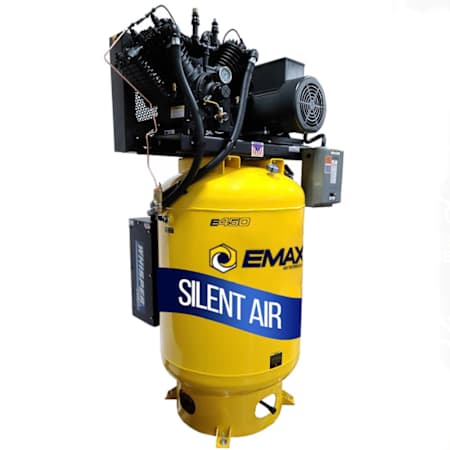

EMAX 10 HP 120 Gal 175 Max PSI Industrial Plus Silent Air Two-Stage Stationary Electric (230 Volt 3 Phase) Reciprocating Air Compressor
Model: ESP10V120V3|Item: bci5121326
$6,039.00
5 In Stock
Voltage
208/230V (Single-Phase)
$6,228.10
230V (3-Phase)
$6,039.00
208V (3-Phase)
$6,387.50
460V (3-Phase)
$6,386.10
230V (3-Phase)
Free Shipping!
Leaves the Warehouse in 5 to 10 business days
-Details
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Electric
- Height: 78"
- Width: 43"
- Length: 41"
- Product Weight: 1020 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
- Filter Included
Tank Specifications:
- Electric Drain Valve Included
- Tank Outlet Size: 1"
- Tank Size: 120
Pump Specifications:
- After Cooler Included
- Oil Sight Glass Included
- Oil System Type: Full Pressure Lubrication
- Lubrication Type: Oil Lubricated
- CFM: 38
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 10 HP
- Amperage: 24A
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 38 |
Height | 78 in. |
Length | 41 in. |
Product Weight | 1020 lbs. |
Width | 43 in. |
Dimensions and Measurements
CFM | 38 |
Height | 78 in. |
Length | 41 in. |
Product Weight | 1020 lbs. |
Width | 43 in. |
Included Components
Filter Included | Yes |
Included Components
Filter Included | Yes |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Full Pressure Lubrication |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1" |
Tank Size | 120 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Full Pressure Lubrication |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1" |
Tank Size | 120 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 24 |
Breaker Needs | 40 Amps |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Electrical and Operational Information
Amperage | 24 |
Breaker Needs | 40 Amps |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
