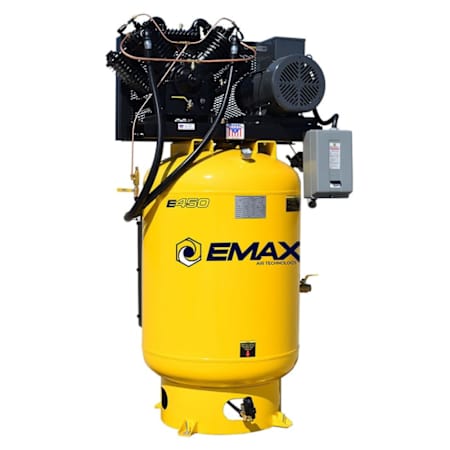

EMAX 10 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (208, 230 Volt 1 Phase) Reciprocating Air Compressor

Product Information:

• Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift


• Super Quiet 10-HP Single Phase Industrial Air Compressor
  • Average 62 DB(a) allows for installation closer to point-of-use
  • Can be installed and operated in all garages, farm shops & industrial applications


• Patented Silent Air Technology
  • Reduces dBA ratings up to 20%!
  • Provides 5-layer filtration ideal for heavy airborne particle


• Two-Stage Solid Cast Iron Pump
  • 38 CFM @ 100 PSI; 34 CFM @ 175 PSI (MAX)
  • Dual control design allows for automatic or continuous run
  • Rated at up to 70,000 hours* (Based on B-10 Bearing Life Rating)
  • Rebuildable all steel connecting rods w/ replaceable bearing inserts


• Air Stream Technology
  • Reduces moisture build up & extends pump life
  • Provides 20% lower operating temperature; coolest in the industry


• 10-HP Industrial Grade 1750 RPM Motor
  • Low RPM design reduces heat for less & tear
  • Prewired magnetic starter for a trouble-free operation


• Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Eliminates countless hours of maintenance
  • Adjust the tension and alignment with ease in a few minutes


• Built-In Intercooler & Aftercooler
  • Allows air to be cooled between stages
  • Second stage cools air before it goes into the tank


• Raised Pump Mounting Platform (ESP Models Only)
  • Pump is raised approximately 2-inches off the mounting base plate
  • Allows 100% constant flow of cool air from flyweel fan around pump crankcase
  • Ensures cooler pump oil temperatures, helps lubricate pump, keeps heat off pistons & connecting rods


• 120 Gallon Receiver With Auto Tank Drain
  • Includes isolation pads to lessen vibration and noise
  • 110V timer controlled, eliminates daily maintenance
  • Reduces moisture build-up to avoid rust & prolong life


• 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty


• Please See Warranty Sheet For More Information

Specifications:

• Certifications: ASME, CSA, and UL
• Fuel Type: Electric
• Height: 78"
• Width: 43"
• Length: 41"
• Product Weight: 1020 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 1"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Full Pressure Lubrication
• Lubrication Type: Oil Lubricated
• CFM: 38
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 10 HP
• Amperage: 40A
• Voltage: 208, 230V
