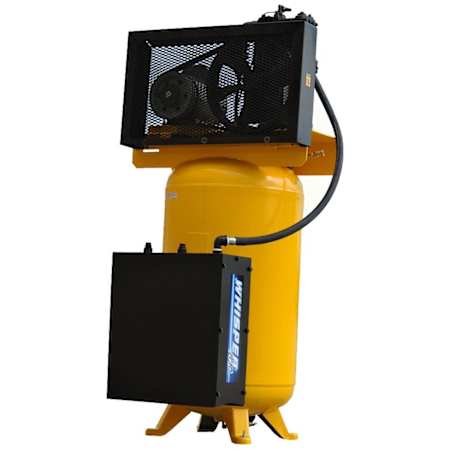

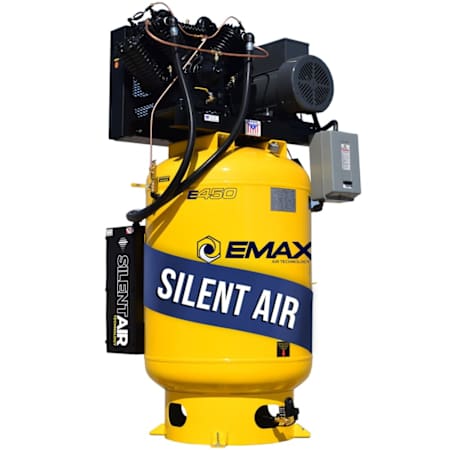

EMAX 7.5 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (460 Volt 3 Phase) Reciprocating Air Compressor

Product Information:

• Patented Silent Air Technology
  • Reduces dBA readings by up to 20%
  • Provides 5-layer filtration ideal for heavy airborne particle work environments


• Two-Stage Pressure Lubricated Pump Cast Iron Pump
  • Dual control design allows for automatic or continuous run
  • Rated at up to 70,000 hours* (Based on B-10 Bearing Life Rating)


• Solid Steel, Heavy Gauge Rods: Built for maximum performance & durability


• Air Stream Technology
  • Provides 20% lower operating temperature; coolest in the industry
  • Reduces moisture build up & extends pump life


• 7.5-HP Industrial Grade 1750 RPM Motor
  • Low RPM design extends useful life; magnetic starter included
  • Condor pressure switch for reliable starts; OSHA approved metal belt guard


• Belt Tension Adjuster - Fast, Easy "One Turn" Design: Reduces vibration and extends belt life; just loosen 4 bolts slightly, adjust tensioner bolt, then retighten 4 bolts

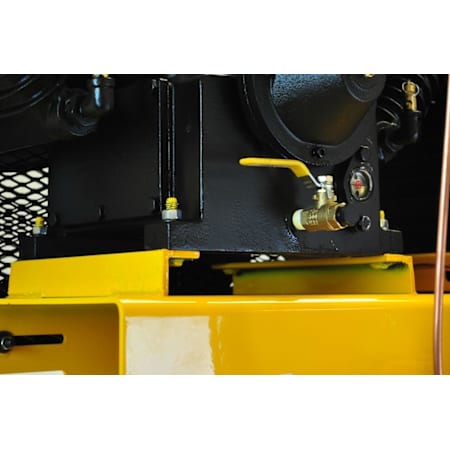

• Raised Pump Mounting Platform (ESP Models Only)
  • Pump is raised approximately 2-inches off the mounting base plate
  • Allows 100% constant flow of cool air from flyweel fan around pump crankcase
  • Ensures cooler pump oil temperatures, helps lubricate pump, keeps heat off pistons & connecting rods


• 120 Gallon Air Tank w/ Dual Timer Automatic Tank Drain
  • Includes isolation pads to lessen vibration and noise
  • 110V timer controlled, eliminates daily maintenance
  • Reduces moisture in your air lines & protects the tank


• 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty


• Please See Warranty Sheet For More Information

Specifications:

• Certifications: ASME, CSA, and UL
• Fuel Type: Electric
• Height: 78"
• Width: 43"
• Length: 41"
• Product Weight: 1020 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 1"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Full Pressure Lubrication
• Lubrication Type: Oil Lubricated
• CFM: 31
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 7.5 HP
• Amperage: 9A
• Voltage: 460V
• Voltage: 460V
