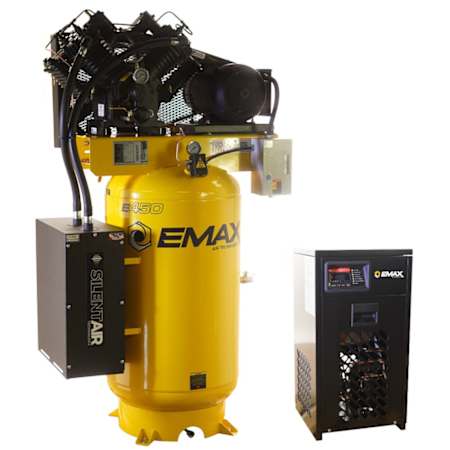

EMAX 7.5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (230 Volt 3 Phase) Reciprocating Air Compressor with Dryer

Product Information:

• Patented Silent Air Technology
  • Reduces dBA readings by up to 20%
  • Piston intake noise is trapped and dissipated within the silencer structure


• Pressure Lubricated Cast Iron Pump w/ Built-In Inter-Cooler & After-Cooler
  • Designed for up to 70,000 hours of commercial or industrial
  • Dual control design allows for automatic or continuous run for all applications


• Cool-Tek - The Coolest Running Compressors In The Industry: Air Stream Technology provides 20% lower operating temperature, reduces moisture build up & extends pump life


• Ram-Tek - Solid Steel, Heavy Gauge Rods: All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability


• EMAX EDRCF1150030 30 CFM Air Dryer w/ Inner Cooler & Auto Drain (115V)
  • 1 micron active coalescing filter to remove oil & water particles for cleaner, dryer air
  • 5 micron pre-filter for removing larger dust & dirt particles from air supply to work efficiently
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery and tools


• 7.5-HP Industrial Grade 1750 RPM Motor
  • Low RPM design extends useful life; motors run much cooler than 3450 RPM
  • Low harmonic distortion, provides much higher torque in cold weather starting and require less electricity under start
  • Belt tension adjuster for fast, easy "one turn" design


• Raised Pump Mounting Platform (ESP Models Only)
  • Pump is raised approximately 2-inches off the mounting base plate
  • Allows 100% constant flow of cool air from flyweel fan around pump crankcase
  • Ensures cooler pump oil temperatures, helps lubricate pump, keeps heat off pistons & connecting rods


• 80 Gallon ASME Receiver With Auto Tank Drain
  • Includes isolation pads to lessen vibration and noise
  • 110V automatic tank drain with dual timers eliminates daily maintenance
  • Prewired condor starter and pressure switch built into one


• 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty


• Please See Warranty Sheet For More Information

Specifications:

• Certifications: ASME, CSA, and UL
• Fuel Type: Electric
• Height: 72"
• Width: 42"
• Length: 38"
• Product Weight: 743 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Full Pressure Lubrication
• Lubrication Type: Oil Lubricated
• CFM: 31
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 7.5 HP
• Amperage: 18A
• Voltage: 230V
• Voltage: 230V
