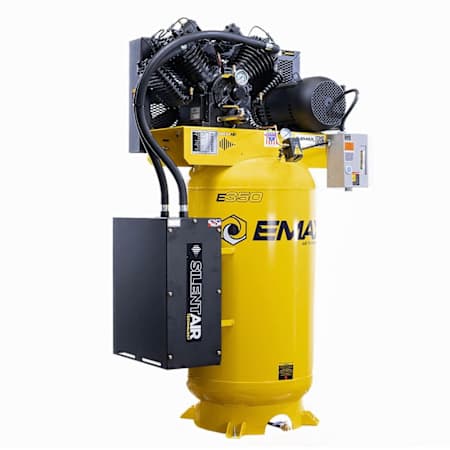

EMAX 7.5 HP 80 Gal 175 Max PSI Silent Air Two-Stage Stationary Electric (208, 230 Volt 1 Phase) Reciprocating Air Compressor
Model: ES07V080V1|Item: bci5120726
$4,238.00
5 In Stock
Details
Product Information:
- Patented Silent Air Technology
- Dissipates compressor intake noise
- Channels intake air through baffle plates & pre-filter media
- Piston intake noise is trapped & dissipated
- Reduces dBA Readings By Up To 20%
- Less than a household vacuum cleaner
- Ideal for applications where workers are close to the compressor
- Solid Cast Iron Pump
- Durable & reliable construction delivers performance
- 100 PSI turn-on pressure; 145 PSI shut-off pressure
- 7.5 HP 208/230 Volt 1-Phase Industrial Grade Motor: 64 start amps needed; runs at 32 amps; 50A breaker recommended
- 1750 RPM Motor: Low RPM motor runs quieter & cooler; lasts longer
- 80 Gallon Air Tank
- ASME rated for safety; 3/4" air outlet
- Includes isolation pads to lessen vibration and noise
- 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
- Please See Warranty Sheet For More Information
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Electric
- Height: 72"
- Width: 42"
- Length: 38"
- Product Weight: 743 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
- Filter Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 80
Pump Specifications:
- After Cooler Included
- Oil Sight Glass Included
- Oil System Type: Full Pressure Lubrication
- Lubrication Type: Oil Lubricated
- CFM: 31
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 7.5 HP
- Amperage: 32A
- Voltage: 208, 230V
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 31 |
Height | 72 in. |
Length | 38 in. |
Product Weight | 743 lbs. |
Width | 42 in. |
Dimensions and Measurements
CFM | 31 |
Height | 72 in. |
Length | 38 in. |
Product Weight | 743 lbs. |
Width | 42 in. |
Included Components
Filter Included | Yes |
Included Components
Filter Included | Yes |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Full Pressure Lubrication |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | Yes |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Full Pressure Lubrication |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 32 |
Breaker Needs | 50 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208, 230 |
Electrical and Operational Information
Amperage | 32 |
Breaker Needs | 50 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
