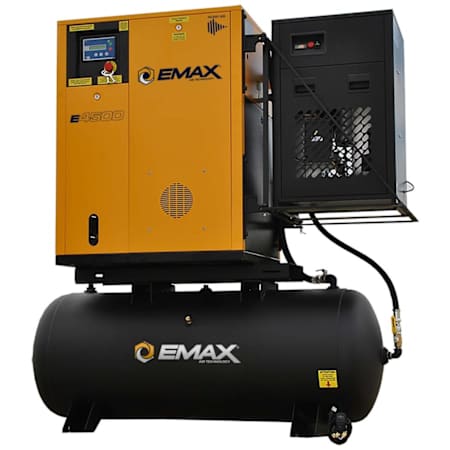

EMAX 7.5 HP 120 Gal 150 Max PSI Stationary Electric (208, 230 Volt 1 Phase) Variable Speed Rotary Air Compressor with Dryer

Product Information:

• This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift


• Variable Speed Rotary Screw Air System
  • 208/230V single-phase power drives 1750 RPM motor
  • Saves money; great for industrial/manufacturing applications
  • Reduces energy demand up to 33%; easy-access filters & separators


• Standard Y/Delta Soft Start Motor: Provides reduced energy demand & amp draw on start up

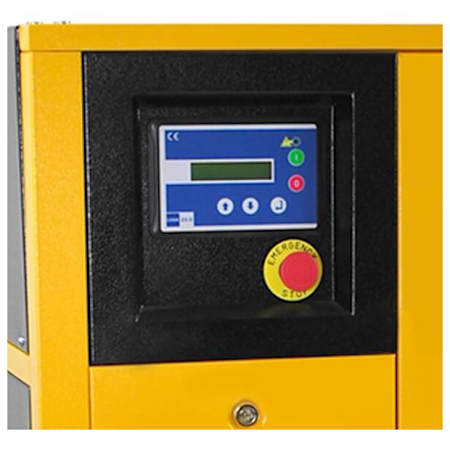

• PLC Controller - Advanced Maintenance Intelligence Monitor
  • Monitors maintenance, temperature, oil level, filtration & hours
  • Also monitors remote start/stop & automatic tank drain


• Precision Engineered Rotary Air End: Highly efficient design provides maximum discharge


• Heavy-Duty Sound Attenuated Cabinet: Provides lower 62 dBA operation than a typical rotary screw


• EMAX EDRCF1150030 30 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
  • Air is filtered of all solid particles 0.01 micron and larger
  • Energy efficient with coalescing filter built in auto drain
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools


• Coalescing 65 CFM Filter Included With 120 Gallon ASME Air Tank: Removes oil, water & particles to provide cleaner air


• 1 Year Limited Standard Factory Warranty: 10 years on air-end pump and 5 year on motor with purchase extended warranty service kit


• Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force: SERVICEKIT001A Maintenance Kit required to validate warranty coverage

Specifications:

• Certifications: UL
• Fuel Type: Electric
• Height: 80"
• Width: 38"
• Length: 80"
• Product Weight: 1195 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Air Dryer Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 120

Pump Specifications:

• Lubrication Type: Oil Lubricated
• CFM: 28
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 7.5 HP
• Voltage: 208, 230V
