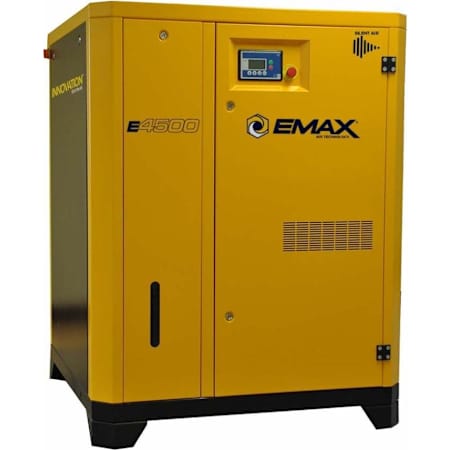

EMAX 40 HP 145 Max PSI Stationary Electric (460 Volt 3 Phase) Variable Speed Rotary Air Compressor

Product Information:

• Too Large For Liftgate Service, Shipping Dock Or Forklift Required


• Ultra-Quiet Rotary Screw Operation
  • Delivers enhanced reliability with ultimate energy efficiency
  • Continuous 100% duty cycle operates at normal conversation level
• High-Performance Variable Speed Drive
  • Drive-Tek reduces energy demand up to 33% for huge savings
  • Gradually increases speed to save on running and peak demand
• Premium Industrial TEFC Direct Drive Motor
  • Runs at 1750 RPM for less wear and tear
  • No belt maintenance & longer bearing life makes it worry free
• Standard Y-Delta Soft Start
  • Reduces energy demand and amp draw on startup
  • Creates less heat to increase compressors lifetime
• Advanced Programmable Logistic Controller
  • Easy to use remote with timed start/stop and low oil shutdown
  • Monitors maintenance, temperature, oil level, filtration, hours and much more
• Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • German built with 10-year warranty & 70,000 running hours
• Heavy-Duty Sound Attenuated Cabinet
  • Offers lower decibel rating with easy access to critical components
  • Designed for use with stationary air receiver (Not Included)
  • Air receivers can be purchased separately to meet your specific needs
• Spin-Tek
  • Unique tool-less oil filters & air/oil separators
  • Genuine Mann filters reduce air end contamination & harmful elements
• 1 Year Limited Standard Factory Warranty
  • 10 years on air-end pump and motor with purchase extended warranty service kit
  • SERVICEKIT028 Maintenance Kit required to validate warranty coverage

Specifications:

• Certifications: CSA and UL
• Fuel Type: Electric
• Height: 65"
• Width: 49"
• Length: 68"
• Product Weight: 2220 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 1-1/4"

Pump Specifications:

• Lubrication Type: Oil Lubricated
• CFM: 197
• Drive Type: Direct Drive

Engine and Motor Specifications:

• Horsepower: 40 HP
• Amperage: 48A
• dB Rating: 74
• Voltage: 460V
