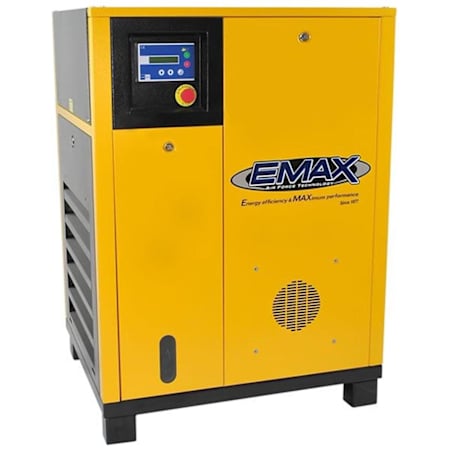

EMAX 5 HP 145 Max PSI Stationary Electric (208, 230 Volt 1 Phase) Variable Speed Rotary Air Compressor

Product Information:

• Rotary Screw Air System
  • 208/230V Single phase, variable speed drive
  • Delivers 20 CFM @ 100 PSI; Max 145 PSI


• Drive-Tek: Reduces energy demand up to 33%


• Standard Y-Delta Soft Start Motor: Provides reduced energy demand and amp draw on start up


• PLC Controller - Advanced Maintenance Intelligence Monitor
  • Maintenance, temperature, oil level, filtration and hours
  • Remote start/stop


• Spin-Tek
  • Unique easy access oil filters & air/oil separators
  • Requires no tools to remove/install saving time and money


• Precision Engineered Rotary Air End: Highly efficient design provides maximum discharge


• Heavy Duty Sound Attenuated Cabinet: Provides lower decibel operation than a typical rotary screw


• Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force: SERVICEKIT001A Maintenance Kit required to validate warranty coverage


• Designed For Use With Stationary Air Receiver (Not Included)

Specifications:

• Certifications: UL
• Fuel Type: Electric
• Height: 42"
• Width: 24"
• Length: 33"
• Product Weight: 880 lbs
• Warranty: 10 Year Residential and 2 Year Commercial

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 3/4"

Pump Specifications:

• Lubrication Type: Oil Lubricated
• CFM: 20

Engine and Motor Specifications:

• Horsepower: 5 HP
• Voltage: 208, 230V
