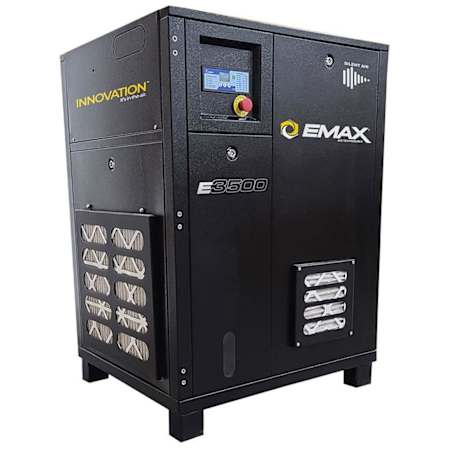

EMAX 5 HP 145 Max PSI Stationary Electric (230 Volt 1 Phase) Rotary Air Compressor

Product Information:

• EMAX New Generation Industrial Rotary Screw System
  • Offers superior performance and quiet operation
  • Built to exacting standards, to provide years of reliable service


• TEFC Premium V-Belt Drive Motor
  • NEMA standard low rpm 4 pole 1750 rpm
  • High-efficiency Mann filters spin on for easy servicing


• Precision Engineered Rotary Air End
  • 100% duty cycle with up to 60,000 hours run life cycle.
  • High flow aluminum Air/Oil radiator cooler with low rpm high flow cooling fan


• Heavy-Duty Soundproof Cabinet
  • Solid steel with powder coated finish prevents rust
  • Easy to remove insulated doors for fast servicing of the compressor
  • Designed to be used with stationary air receiver (Not Included)


• PLC Logik 9 Smart Controller
  • Gives you the visual ability to set pressures, alarms and schedules
  • Includes temperature display, master monitoring, hour meter and auto start if power is lost


• VMC High Flow Inlet Poppet Valve
  • Provides longer life due to lower friction
  • Delivers higher compressor air flow and efficiency


• 1 Year Limited Standard Factory Warranty: 10 years on air-end pump and 5 year on motor with purchase extended warranty service kit


• Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force: SERVICEKIT001A Maintenance Kit required to validate warranty coverage

Specifications:

• Certifications: UL
• Fuel Type: Electric
• Height: 41"
• Width: 24"
• Length: 35"
• Product Weight: 438 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 1/2"

Pump Specifications:

• After Cooler Included
• Lubrication Type: Oil Lubricated
• CFM: 19
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 5 HP
• Voltage: 230V
