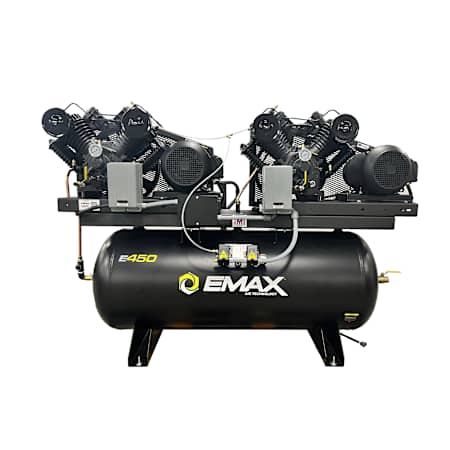

EMAX 10 HP 120 Gal 175 Max PSI Two-Stage Floor Mounted Electric (208, 240 Volt 1 Phase) Air Compressor with Radiator After Coolers

EMAX Duplex 10HP V4 76CFM 1- Phase 2-Stage 120 Gal. Horizontal stationary electric air compressor with pressure lube pump, isolator pads, belt tensioner, auto drain, alternating switch. Features and benefits include an alternating switch that will allow the units to alternate from one pump to another. Under the next start-up sequence the opposing pump will start. This eliminates excessive running and allows the pumps to cool under heavy loads. These units also have a feature that if one pump will not maintain pressure and does not keep up with demand, then both units will come on and run until the unit hits the pressure setting after which it will go back into normal alternating mode.The unit features a Radiator after cooler lowering the compressor air temperatures to 10 degrees above ambient going into the tank! Although its primary benefit is cooling the compressed air and removing excess moisture, having a radiator aftercooler has further important benefits. This increases the life span of the compressor, helps prevent rust and corrosion in tanks, extends the life of your tools and equipment, increases efficiency while reducing the load on the air dryer which in turn requires the dryer to remove less moisture lowering its operating expenses. All backed by the warranty in the industry!

Features:

• Two Pressure Lubricated solid Cast Iron Pump with Spin on Oil Filter
• Radiator Aftercooler
• Automatic Timed Tank Drain 110-volt dual timer controlled, eliminates daily maintenance
• ASME /CRN Certified Tank
• Adjustable Belt Tensioner for fast, easy one-turn design reduces vibration and extends belt life
• Alternating Switch

Specifications:

• Certifications: ASME, CSA, and ETL
• Fuel Type: Oil
• Height: 64
• Width: 32
• Length: 82
• Product Weight: 1178
• Warranty: 1 Year, 5 Year

Included Accessories:

• Pressure Gauge Included
• Pressure Regulator Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 1"
• Tank Size: 120
• Drive Type: Belt Drive

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Full Pressure Lubrication
• Lubrication Type: Oil Lubricated
• Voltage: 208, 240V

Engine and Motor Specifications:

• Horsepower: 10" HP
