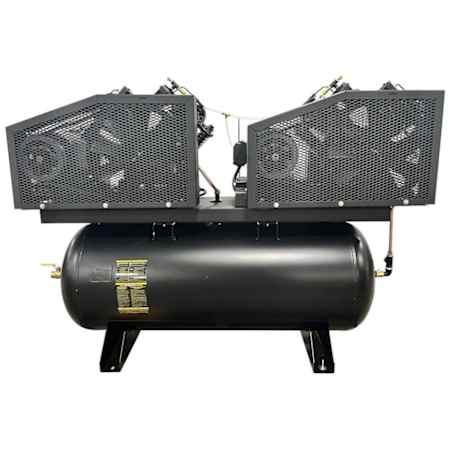

EMAX 15 HP 120 Gal 175 Max PSI Two-Stage - Duplex Stationary Electric (208, 230 Volt 1 Phase) Reciprocating Air Compressor

Product Information:

• EMAX Duplex Alternating Air Compressor
  • Eliminates excessive running and allows the pumps to cool under heavy loads
  • Pumps up to set pressure, then next start-up sequences the opposing pump will start


• Two Individual 7.5-HP TEFC Motors & Pumps Mounted on a Single Tank
  • Provides 100% backup
  • Automatic alternating of motors and pumps for even wear
  • Low 1750 RPM industrial grade motor runs quieter and cooler; lasts longer

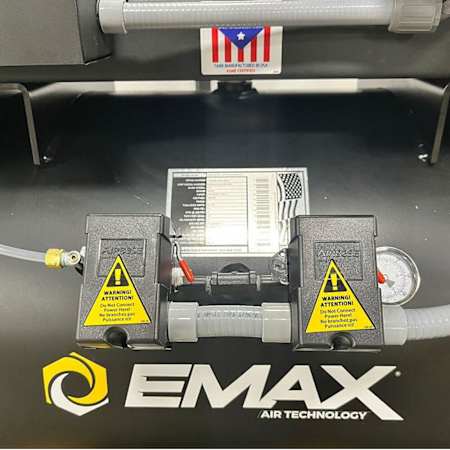

• (2) Magnetic Motor Starter w/ Relay: Safely starts the motor, provides under-voltage & overload protection

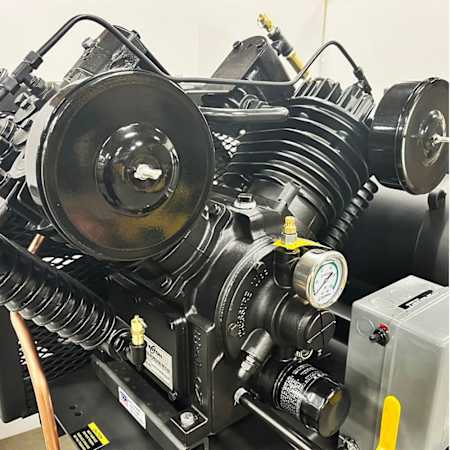

• 2-Stage Solid Cast Iron Pump
  • Removable disc industrial valves, 2 solid steel rods & low RPM
  • Rated at up to 70,000 hours based on B-10 bearing life rating


• Built-In Intercooler & Aftercooler
  • Allows air to be cooled between stages
  • Second stage cools air before it goes into the tank


• 120-Gallon ASME Air Receiver
  • Includes isolation pads to lessen vibration and noise
  • Auto tank drain 110V dual timer controlled, eliminates daily maintenance


• Heavy Duty 16-Gauge Steel Belt Guard
  • Totally enclosed to prevent injuries
  • Belt tensioner adjuster reduces vibration and extends belt life


• 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
  • Purchase of 2 kits is required for Extended Warranty to apply
  • Please See Warranty Sheet For More Information



Specifications:

• Certifications: ASME, CSA, and UL
• Fuel Type: Electric
• Height: 64"
• Width: 42"
• Length: 96"
• Product Weight: 1457 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 1"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Full Pressure Lubrication
• Lubrication Type: Oil Lubricated
• CFM: 62
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 15 HP
• Amperage: 32A
• Voltage: 208, 230V
• Voltage: 208, 230V
