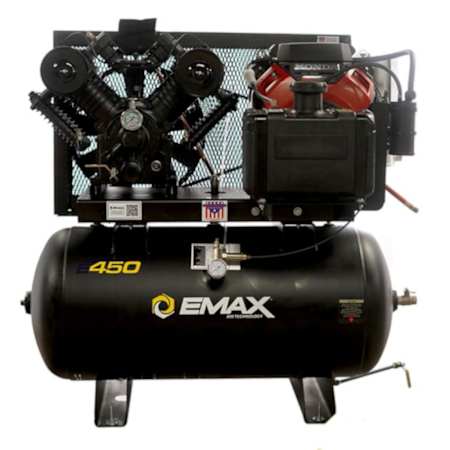

EMAX 18 HP 60 Gal 175 Max PSI Two-Stage Truck Mount Gas Reciprocating Air Compressor with Electric Start Honda GX Engine
Model: EGES1860ST|Item: bci5120657
$7,996.80
2 In Stock
Details
Product Information:
- Gas Drive Series Two-Stage Cast Iron Pump
- Quiet, low RPM design
- Rated at up to 70,000 hours* (Based on B-10 Bearing Life Rating)
- 18-HP Honda GX Engine w/ Electric Start
- OHV design provides excellent torque and fuel efficiency
- Provides long life and proven durability
- 5 gallon gas tank lets you work longer between fill-ups
- Flow-Tek - Concentric Disc Valves: Delivers maximum air flow & reliability with low replacement cost
- Cool-Tek - The Coolest Running Compressors In The Industry
- 35% lower operating temperature
- Reduces moisture build up & extends pump life
- Air-Stream Technology: Provides up to 50% longer pump life
- Belt Tension Adjuster - Fast, Easy "One Turn" Design: Reduces vibration and extends belt life
- Gate Valve Oil Drain: Provides quick, clean oil changes
- 60-Gallon Truck-Mount Horizontal Air Receiver: Powder coated and ASME certified
- ***Electric Start Battery & Cables Not Included; Must Be Purchased Separately***
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Gas
- Height: 50"
- Width: 23"
- Length: 51"
- Product Weight: 610 lbs
- Warranty: 2 Year Commercial and 2 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 60
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Full Pressure Lubrication
- Lubrication Type: Oil Lubricated
- CFM: 39
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Auto Idle Mode Included
- Honda GX
- Horsepower: 18 HP
Dimensions and Measurements
CFM | 39 |
Height | 50 in. |
Length | 51 in. |
Product Weight | 610 lbs. |
Width | 23 in. |
Dimensions and Measurements
CFM | 39 |
Height | 50 in. |
Length | 51 in. |
Product Weight | 610 lbs. |
Width | 23 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil Sight Glass Included | Yes |
Oil System Type | Full Pressure Lubrication |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 60 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil Sight Glass Included | Yes |
Oil System Type | Full Pressure Lubrication |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 60 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 18 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | 12-Volt Button Start |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 18 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | 12-Volt Button Start |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
