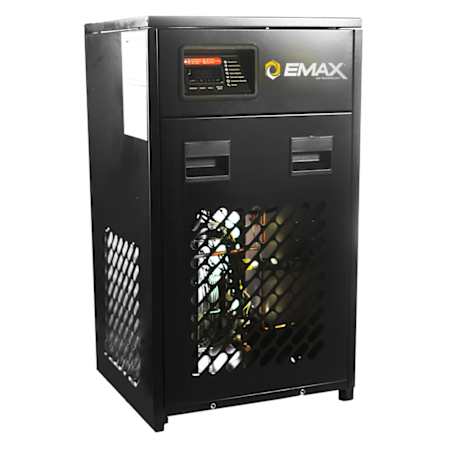

EMAX Industrial 115V-1 Refrigerated Air Dryer 10HP (58 CFM)

Product Information:

• Premium Industrial 58 CFM Refrigerated Air Dryer
  • Chills the air to condense & remove moisture; 115 Volt, 1-phase, 7.2 Amp power
  • 230 PSI max; max inlet temp: 140°F; 37°F - 50°F dewpoint; designed for 3/4" pipe
  • Max ambient temperature: 122°F; for use with compressors that do not have aftercoolers


• 5 Micron Pre-Filter: Removes larger dust & dirt particles from the air supply so the dryer can work more efficiently


• 1 Micron Active Coalescing Filter: Removes oil & water particles from the air; cleaner, drier air improves tool life & project results


• Refrigerated Air Inlet Inner Cooler: Trouble-free high temperature cooling for consistent, dry air


• Automatic Drain System: Eliminates the need for daily maintenance


• Outlet Air Baffle Heater: Prevents condensation on outlet air piping


• Side Mounted Condenser & Fan Motor
  • Easy to reach & service through the cabinet doors- no screws to slow you down
  • Uses environmentally friendly 134A refrigerant


• Heavy Duty Steel Cabinet & Safety Shut-Off Valve: Meets the demands of industrial use; valve shuts the compressor down if it gets over or below a safe temperature


• 2 Year Limited Factory Warranty; 5 Years On Heat Exchanger

Specifications:

• Warranty: 2 Year Commercial and 2 Year Residential
• Product Weight: 120 lbs
• Fuel Type: Electric
• Height: 30"
• Length: 24"

Air Dryer Specifications:

• Air Inlet Size: 3/4"
• Air Outlet Size: 3/4"
• Automatic Drain Valve Included
• Horsepower: 10 HP

Pump Specifications:

• After Cooler Included
