Ellington Fans Classic 52" 5 Blade Indoor Ceiling Fan - Blades and Light Kit Included

Included Components:

• (5) Blades
• (4) Incandescent Candelabra (E12) Bulbs
• 4" Downrod
• Light Diffusing Shades
• Light Kit

Features:

• Dry Location rated
• Lifetime Limited Warranty
• Pull Chain Control

Blade Specifications:

• Blade Span: 52"
• Number of Blades: 5
• Blade Pitch: 12°
• Blades Included: Yes
• Blades Reversible: Yes

Motor Specifications:

• Motor Type: AC Induction
• Motor Size: 153mm x 15mm
• Reversible Motor: Yes

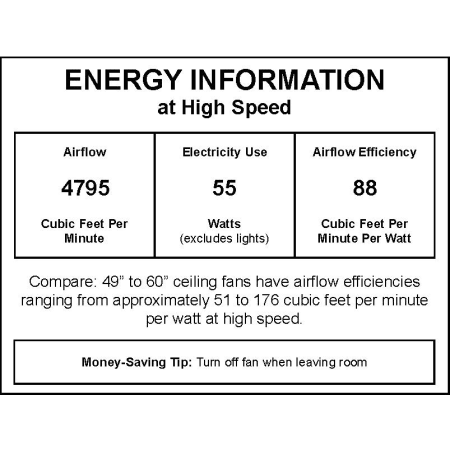

• CFM (Cubic Feet per Minute), High: 4795
• Voltage: 120 V
• Airflow Efficiency: 88 (CFM/Watt)
• Number of Speeds: 3

Sloped Ceiling Specifications:

• For ceilings with slope from 35° to 45°, use the 45AD angled ceiling adapter

High or Low Ceiling Specifications:

• The Manor-L is designed for installation on standard 8 to 9 foot ceilings. If your ceiling is higher, you'll need to purchase an additional downrod. The rule of thumb is that ceiling fans should have a minimum of 7 feet and a maximum of 9 feet of clearance between the bottom of the fan and the floor in order to circulate air efficiently. If you have a low ceiling, purchase the CMA flush mount adapter to reduce the hanging height of your fan.

Suggested Downrod Lengths:

• 9 Foot Ceiling: 6" - 12"
• 10 Foot Ceiling: 12" - 18"
• 11 Foot Ceiling: 18" - 24"
• 12 Foot Ceiling: 24" - 36"
• 13 Foot Ceiling: 36" - 48"
• 14 Foot Ceiling: 48" - 60"
• 15 Foot Ceiling: 60" - 72"
• For ceiling heights greater than 15 feet, you'll need to purchase the downrod Coupler to join two downrods together.
