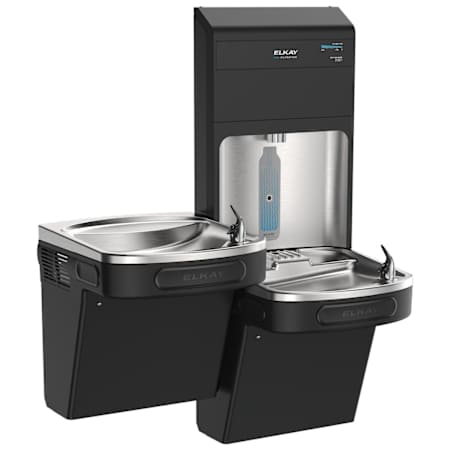

Elkay Pro Filtration Bottle Filling Station and Bi-Level ADA Refrigerated Cooler with Double Ultra-Capacity, Lead Reduction Filter
Model: LZSTL8WSBPRO-2FL10|Item: bci5207625
Details
Get more uptime, simplified maintenance and reliability from Elkay Pro Filtration bottle filling stations - the next generation of bottle filling stations from the brand you trust. With an advanced filtration system and innovative design, maintaining filtered drinking water is easier than ever. Filters are accessible from the top of the bottle filling station for easy filter changes in a matter of seconds. They’re compatible with Elkay Pro Filtration filters, which offer high-capacity filtration up to 10,000 gallons and high reduction of contaminants, such as total PFAS, lead, microplastics, copper, asbestos and more. Enhance system’s filtration with the stage 1 sediment filter, which reduces sediment buildup caused by municipal water supply.
Elkay LZSTL8WSBPRO-2FL10 Features:
- Covered under Elkay's 5 year limited warranty
- Constructed for long lasting durability and dependability
- Bar activated control
- Hands free bottle filler included
- High-performance system: pairs exclusively with Elkay Pro Filtration filters to deliver safer drinking water
- Faster filter changes: replace filters easily and more efficiently at the top of the unit
- Save time and resources: access the ultra-capacity filters from the top, reducing service time and simplifying maintenance
- 2 ultra-capacity filters included: Elkay Pro Filtration 10,000-gallon filters are tested and certified to NSF/ANSI 42, 53 and 401 to reduce lead, microplastics and more; ideal for high-traffic areas
- Automatic filter recognition: Elkay Pro Filtration system recognizes new filter and automatically resets filter status lights, shortening installation time
- Automatic filter flushing: system detects newly installed filters and automatically flushes the system to shorten installation time and clean debris and air from the waterway
Elkay LZSTL8WSBPRO-2FL10 Specifications:
- Height: 46-7/8" (bottom to top)
- Width: 19" (left to right)
- Projection: 18-3/8" (front to back)
- Installation Type: Wall Mounted
- Number of Stations: 2
- Power: 115V/60Hz
- Filtered: Yes
- ADA Compliant: Yes
Specifications
Dimensions and Measurements
Capacity (Gallons) | 8 |
Cooling Capacity | 8 GPH |
Depth | 18.375 in. |
Flow Rate (GPH) | 60 |
Flow Rate (GPM) | 1 |
Height | 46.875 in. |
Inlet Diameter | 0.375 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 89 lbs. |
Water Pressure (Max) | 105 PSI |
Water Pressure (Min) | 40 PSI |
Width | 19 in. |
Dimensions and Measurements
Capacity (Gallons) | 8 |
Cooling Capacity | 8 GPH |
Depth | 18.375 in. |
Flow Rate (GPH) | 60 |
Flow Rate (GPM) | 1 |
Height | 46.875 in. |
Inlet Diameter | 0.375 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 89 lbs. |
Water Pressure (Max) | 105 PSI |
Water Pressure (Min) | 40 PSI |
Width | 19 in. |
Included Components
Cooling Unit | Yes |
Temperature Control | Yes |
Included Components
Cooling Unit | Yes |
Temperature Control | Yes |
Characteristics and Features
Antimicrobial | Yes |
Barrier Free | Yes |
Bi-Level | Yes |
Control Type | Bar, Sensor |
Filtered | Yes |
Hands Free | Yes |
Installation Type | Wall Mounted |
Material | Stainless Steel |
Number Of Basins | 2 |
Number of Stations | 2 |
Refrigerant | R-134a |
Vandal Resistant | No |
Characteristics and Features
Antimicrobial | Yes |
Barrier Free | Yes |
Bi-Level | Yes |
Control Type | Bar, Sensor |
Filtered | Yes |
Hands Free | Yes |
Installation Type | Wall Mounted |
Material | Stainless Steel |
Number Of Basins | 2 |
Number of Stations | 2 |
Refrigerant | R-134a |
Vandal Resistant | No |
Electrical and Operational Information
Amperage | 5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Voltage | 115 |
Wattage | 370 |
Electrical and Operational Information
Amperage | 5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Voltage | 115 |
Wattage | 370 |
Warranty and Product Information
ADA | Yes |
ANSI Certification | 372, 42, 53, 61 |
Approved for Commercial Use | Yes |
ASME Code | A112.19.3 |
Certifications | UL |
Collection | Pro Filtration |
Country Of Origin | USA |
CSA Code | B45.4, C22.2 No. 120 |
Lead Leaching Certified NSF/ANSI 61 | Yes |
Location Rating | Dry Location |
Low Lead Compliant | Yes |
Manufacturer Warranty | 5 Year Limited |
Warranty and Product Information
ADA | Yes |
ANSI Certification | 372, 42, 53, 61 |
Approved for Commercial Use | Yes |
ASME Code | A112.19.3 |
Certifications | UL |
Collection | Pro Filtration |
Country Of Origin | USA |
CSA Code | B45.4, C22.2 No. 120 |
Lead Leaching Certified NSF/ANSI 61 | Yes |
Location Rating | Dry Location |
Low Lead Compliant | Yes |
Manufacturer Warranty | 5 Year Limited |
