Elica

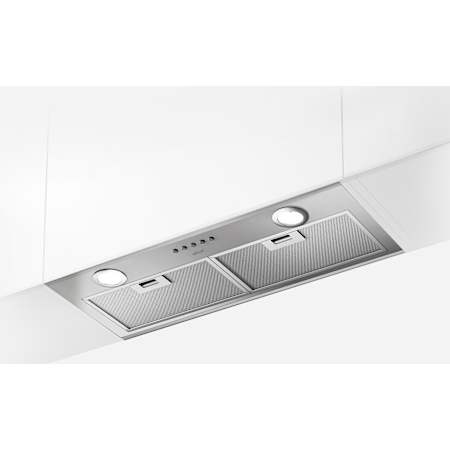

Elica Asti Series 400 CFM 28 Inch Wide Range Hood Insert with Top and Rear Outlet Stainless Steel
Elica Asti Series 400 CFM 28 Inch Wide Range Hood Insert with Top and Rear Outlet Stainless Steel
Alternate Image
Alternate Image

Elica Asti Series 400 CFM 28 Inch Wide Range Hood Insert with Top and Rear Outlet

Model: EAS428S2
|
Item: bci5211025

$519.00
Finish: Stainless Steel -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 9 to 15 weeks
-
Return & Shipping Details

Details

Features:

  • Blower outputs up to 400 CFM to keep your kitchen free of cooking fumes and odors
  • Mesh filters effectively trap and filter out unwanted smoke, odors, and grease
  • 2 LED lights illuminate the cooking area (bulbs included)
  • Complements items from the Asti collection
  • Hood can be converted to ductless ventilation for improved efficiency and flexible installation options
  • Push button controls allow you to easily set the power level of your range hood
  • 3 available speeds provide just the right amount of ventilation
  • Covered under a 2 year limited parts and labor manufacturer warranty
  • Super easy installation
  • Top or rear outlet

Specifications:

  • CFM: 400
  • Sones: 0.4, 5.0
  • Nominal Width: 28"
  • Width: 28-1/4"
  • Height: 9-1/2"
  • Depth: 10-3/4"
  • Duct Size: 6" Round
  • Height Above Cooktop: 36"
  • Amperage: 2.3A
  • Voltage: 120V
  • Wattage: 289W

Specifications

Key Specifications

  • CFM
    400
  • Depth
    10.75 in.
  • Duct Size
    6" Round
  • Height
    9.5 in.
  • Nominal Width
    28 in.
  • Blower Type
    Internal
  • Filter Type
    Mesh Filters
  • Sones
    0.4, 5

Manufacturer Resources

Specification Sheet

Dimensions and Measurements

CFM
400
CFM (High)
400
Depth
10.75 in.
Duct Size
6" Round
Height
9.5 in.
Height Above Cooktop
36"
Height Above Cooktop (Max)
30 in.
Height Above Cooktop (Min)
24 in.
Nominal Width
28 in.
Product Weight
21.83 lbs.
Width
28.25 in.

Dimensions and Measurements

CFM
400
CFM (High)
400
Depth
10.75 in.
Duct Size
6" Round
Height
9.5 in.
Height Above Cooktop
36"
Height Above Cooktop (Max)
30 in.
Height Above Cooktop (Min)
24 in.
Nominal Width
28 in.
Product Weight
21.83 lbs.
Width
28.25 in.

Included Components

Available Without Blower
No
Bulb Included
Yes
Convertible to Ductless / Recirculating
Yes
Ductless
No
Includes Remote
No
Light Included
Yes

Included Components

Available Without Blower
No
Bulb Included
Yes
Convertible to Ductless / Recirculating
Yes
Ductless
No
Includes Remote
No
Light Included
Yes

Characteristics and Features

Blower Type
Internal
Bulb Type
LED
Control Type
Push Button
Duct Discharge
Horizontal, Vertical
Filter Type
Mesh Filters
Fingerprint Resistant
No
Installation Type
Full Installation
Material
Stainless Steel
Number of Bulbs
2
Panel Ready
No
Smart Home
No
Theme
Modern

Characteristics and Features

Blower Type
Internal
Bulb Type
LED
Control Type
Push Button
Duct Discharge
Horizontal, Vertical
Filter Type
Mesh Filters
Fingerprint Resistant
No
Installation Type
Full Installation
Material
Stainless Steel
Number of Bulbs
2
Panel Ready
No
Smart Home
No
Theme
Modern

Electrical and Operational Information

Amperage
2.3
Frequency
60 Hertz
Sones
0.4, 5
Speeds
3
Voltage
120
Wattage
289
Watts Per Bulb
2.1

Electrical and Operational Information

Amperage
2.3
Frequency
60 Hertz
Sones
0.4, 5
Speeds
3
Voltage
120
Wattage
289
Watts Per Bulb
2.1

Warranty and Product Information

ADA
No
Approved for Commercial Use
No
Certifications
UL
Collection
Asti
Country Of Origin
Mexico
Energy Star
No
Manufacturer Warranty
2 Year Limited Parts and Labor
Outdoor Approved
No
Title 20 Compliant
Yes
Title 24
Yes

Warranty and Product Information

ADA
No
Approved for Commercial Use
No
Certifications
UL
Collection
Asti
Country Of Origin
Mexico
Energy Star
No
Manufacturer Warranty
2 Year Limited Parts and Labor
Outdoor Approved
No
Title 20 Compliant
Yes
Title 24
Yes
