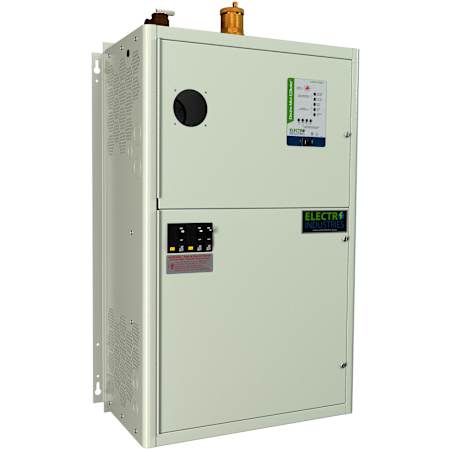

Electro Industries Mini EZBoiler M2 40,900 BTU 240 Volt Electric Boiler
Model: EZB-M2-12-240-1|Item: bci5220715
Details
The EZBoiler is the complete electric boiler solution for hydronic heating systems. Designed with the contractor in mind, it is the industry’s easiest boiler system to professionally install. This premium series of reliable, energy efficient boiler systems are ideal for radiant floor heating and hot water baseboard applications. Engineered for ease of installation and universal compatibility. Electro has taken the guesswork and labor out of piping your boiler system by including everything you need in one convenient package. Simply run your supply and return lines from the boiler system to your manifolds. The EZBoiler is safe to operate, and it will save you both time and money, and, most importantly, it will provide years of reliable service and performance.
Features:
- Thermostat or end switch connection (R and W)
- Dry contact for load control (off-peak, TOU) or low water cutoff
- Dual Fuel or Energy Selector Switch
- 10-amp circulator switching relay
- LED indicator lights
- 100% safe and efficient
- ETL/Intertek listed
- ASME H-Stamp Vessel
- 20 year vessel and element warranty
- Full element modulation for precise temperature control and energy savings
- Outdoor reset capability
- Two temperature zone capability with single zone priority control
Specifications:
- BTU Heating: 40,900
- Fuel Type: Electric
- Height: 34-7/20"
- Width: 21-17/20"
- Depth: 12-3/5"
- Temperature (Max): 180°F
- Minimum Flow Rate: 0.3 GPM
- kW: 12
- Voltage: 240V
- Installation Type: Wall Mounted
Dimensions and Measurements
Capacity (Gallons) | 1 |
Depth | 12.6 in. |
Height | 34.35 in. |
Minimum Flow Rate | 0.3 GPM |
Product Weight | 111 lbs. |
Return Diameter | 1 in. |
Supply Diameter | 0.75 in. |
Water Connection | 3/4" NPT |
Width | 21.85 in. |
Dimensions and Measurements
Capacity (Gallons) | 1 |
Depth | 12.6 in. |
Height | 34.35 in. |
Minimum Flow Rate | 0.3 GPM |
Product Weight | 111 lbs. |
Return Diameter | 1 in. |
Supply Diameter | 0.75 in. |
Water Connection | 3/4" NPT |
Width | 21.85 in. |
Included Components
Pump Included | Yes |
Included Components
Pump Included | Yes |
Characteristics and Features
Heater Type | Boiler |
Mounting Type | Wall Mounted |
Characteristics and Features
Heater Type | Boiler |
Mounting Type | Wall Mounted |
Electrical and Operational Information
Amperage | 50 |
Breaker Needs | 45 Amps |
BTU Heating | 40900 |
Efficiency Rating | 100 Percent |
Electrical Phases | 1 |
Fuel Type | Electric |
Maximum Operating Pressure (PSI) | 30 |
Operating Temperature (Max) | 180 °F |
Voltage | 240 |
Electrical and Operational Information
Amperage | 50 |
Breaker Needs | 45 Amps |
BTU Heating | 40900 |
Efficiency Rating | 100 Percent |
Electrical Phases | 1 |
Fuel Type | Electric |
Maximum Operating Pressure (PSI) | 30 |
Operating Temperature (Max) | 180 °F |
Voltage | 240 |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 2 Year Parts, 20 Year Vessel and Element |
Outdoor Approved | No |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 2 Year Parts, 20 Year Vessel and Element |
Outdoor Approved | No |
