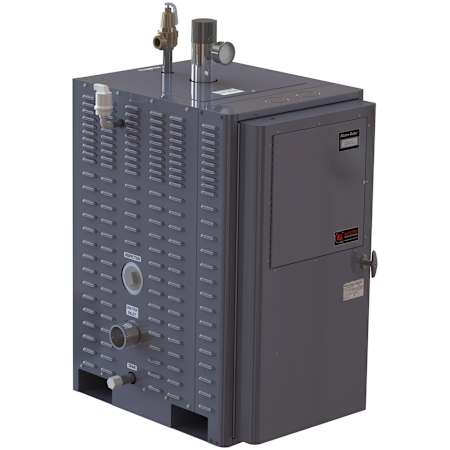

Electro Industries Industrial 368,500 BTU 480 Volt Electric Boiler

Electro Industries Industrial Boiler is a very compact and effective solution for applications requiring up to 300 kW or 1 million BTU’s. With a 30” wide and 56” high profile, the Industrial Boiler will fit through most service doors and requires less floor space, making it perfect for small mechanical rooms and limited access locations. With built-in lead-lag control, you can connect two Industrial Boilers together to operate as one. Digital temperature control provides automatic turn down as loads decrease, and provides the exact water temperature required for your application. Backed by an industry leading warranty, the Electro Industrial Boiler is the clear choice for commercial applications.

Features:

• Digital display for setup and monitoring
• Water temperature set point control
• Outdoor reset
• Lead-lag control for multi-boiler applications
• Remote shutdown and utility load control options
• Low water cutoff
• Manual hi-limit control
• 120V operating control circuit
• Fuse protection for individual element circuits
• SCCR rated at 100 kA
• ASME stamped vessel (built in accordance to ASME Section IV)
• Conforms to CSD-5
• 1 year element and 5 year vessel warranty

Specifications:

• BTU Heating: 368,500
• Fuel Type: Electric
• Height: 46"
• Width: 26-1/8"
• Depth: 38"
• Temperature (Max): 195°F
• Minimum Flow Rate: 15 GPM
• kW: 108
• Voltage: 480V
• Installation Type: Floor Mounted
