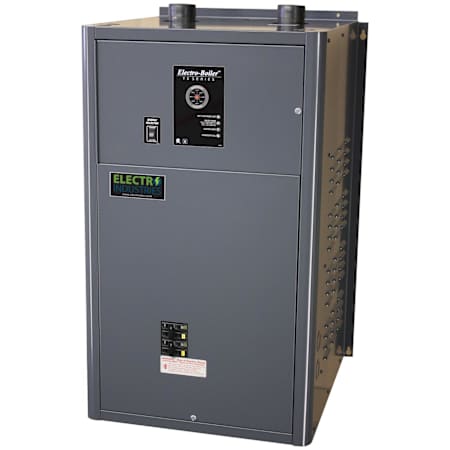

Electro Industries TS Commercial 143,300 BTU 480 Volt Electric Boiler
Model: EB-CX-42-48|Item: bci5220806
Details
The TS Commercial Series boilers are designed to meet the needs of all your hydronic heating applications. WarmFlo temperature control allows you to select a range of water temperature outputs. Modulating element control allows for precise water temperature control in high water temperature set point applications such as baseboard and radiator heat. This series is also ideal for multi-zone applications where water flow can vary by zone. Enable outdoor reset and your Electro-Boiler can anticipate your heat demand, increasing or decreasing water temperature for even greater operating efficiency. The TS Commercial Series is available in a variety of kW outputs, with single and three-phase voltage options. This series is sized to handle those large radiant heat applications in a convenient wall-mount package.
Features:
- Digital temperature sensor
- Element modulation
- Outdoor reset
- Simple installation
- Wall-mounted
- Circuit breaker disconnect
- ASME stamped vessel (built in accordance to ASME Section IV)
- Low pressure drop
- 1 year element and 5 year vessel warranty
Specifications:
- BTU Heating: 143,300
- Fuel Type: Electric
- Height: 36"
- Width: 22"
- Depth: 20-14/25"
- Temperature (Max): 170°F
- Minimum Flow Rate: 4 GPM
- kW: 42
- Voltage: 480V
- Installation Type: Wall Mounted
Specifications
Dimensions and Measurements
Capacity (Gallons) | 13.1 |
Depth | 20.56 in. |
Height | 36 in. |
Minimum Flow Rate | 4 GPM |
Product Weight | 225 lbs. |
Return Diameter | 1 in. |
Supply Diameter | 1 in. |
Water Connection | 1" NPT |
Width | 22 in. |
Dimensions and Measurements
Capacity (Gallons) | 13.1 |
Depth | 20.56 in. |
Height | 36 in. |
Minimum Flow Rate | 4 GPM |
Product Weight | 225 lbs. |
Return Diameter | 1 in. |
Supply Diameter | 1 in. |
Water Connection | 1" NPT |
Width | 22 in. |
Characteristics and Features
Heater Type | Boiler |
Installation Type | Wall Mounted |
Characteristics and Features
Heater Type | Boiler |
Installation Type | Wall Mounted |
Electrical and Operational Information
Amperage | 50.5 |
Breaker Needs | 70 Amps |
BTU Heating | 143300 |
Efficiency Rating | 100 Percent |
Electrical Phases | 3 |
Fuel Type | Electric |
Maximum Operating Pressure (PSI) | 30 |
Operating Temperature (Max) | 170 °F |
Voltage | 480 |
Electrical and Operational Information
Amperage | 50.5 |
Breaker Needs | 70 Amps |
BTU Heating | 143300 |
Efficiency Rating | 100 Percent |
Electrical Phases | 3 |
Fuel Type | Electric |
Maximum Operating Pressure (PSI) | 30 |
Operating Temperature (Max) | 170 °F |
Voltage | 480 |
Warranty and Product Information
Certifications | ASME, ETL |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 1 Year Element, 5 Year Vessel |
Outdoor Approved | No |
Warranty and Product Information
Certifications | ASME, ETL |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 1 Year Element, 5 Year Vessel |
Outdoor Approved | No |
