Elco 6" 13W Vertical CFL Downlight with 120V/277V Electronic Dimming Ballast

Elco EL27H13D 6" 13W Vertical CFL Downlight with 120V/277V Electronic Dimming Ballast

Advances in compact fluorescent lighting (CFL), have made CFL the preferred choice in both residential and commercial applications. The increased energy savings and efficiency of CFL recessed lighting have also made its immediate benefit widely popular over traditional incandescent lighting. Elco has been on the forefront with a large selection of recessed CFL lighting options available. Elco uses only brand name all American ballasts included in their compact fluorescent housings.

Features:

• Energy efficient
• Single wall construction
• Integral thermal protector guards against improper lamping
• Adjustable socket bracket allows for different lamp types/sizes and aids in consistent lamp positioning
• Includes captive hanger bars
• Hanger bars span 24" joists and can be repositioned 90°
• Pre-wired junction box provided with 0.5" and 0.75" knockouts
• Maximum (8) No. 12 AWG branch-circuit conductors (4 in, 4 out)
• Junction box provided with removable access plates
• Housing adjusts 1.375" to accommodate different ceiling material thicknesses
• Dual voltage: 120V/277V
• Dimmable
• Electronic ballast

Specifications:

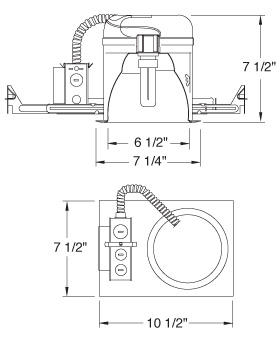

• Dimensions: 7.5"H x 7.5"D x 10.5"W
• Ceiling cutout: 6.25"
• UL damp location listed
• UL feed-through listed
• Compatible with the following Elco trims: EL112 (CFL), EL113 (CFL), EL116 (CFL), EL119SH (CFL), EL12 (CFL), EL122 (CFL), EL123W (CFL), EL124W (CFL), EL13 (CFL), EL16 (CFL), EL19SH (CFL), EL22 (CFL), EL23 (CFL), EL24 (CFL), EL319 (CFL), EL319W (CFL), ELA101 (CFL), ELA102 (CFL), ELA105 (CFL), ELA95S (CFL), ELA99S (CFL), ELM300 (CFL), ELM301W (CFL), ELM412W (CFL), ELM422W (CFL), ELM427 (CFL), ELM46 (CFL), ELM47 (CFL), ELS30 (CFL), ELS310C (CFL), ELS311 (CFL), ELS40 (CFL), ELS42 (CFL), ELS426 (CFL)
